1.5 in. Post Extenders and Spacers

Products
Features
Contact Us

Overview

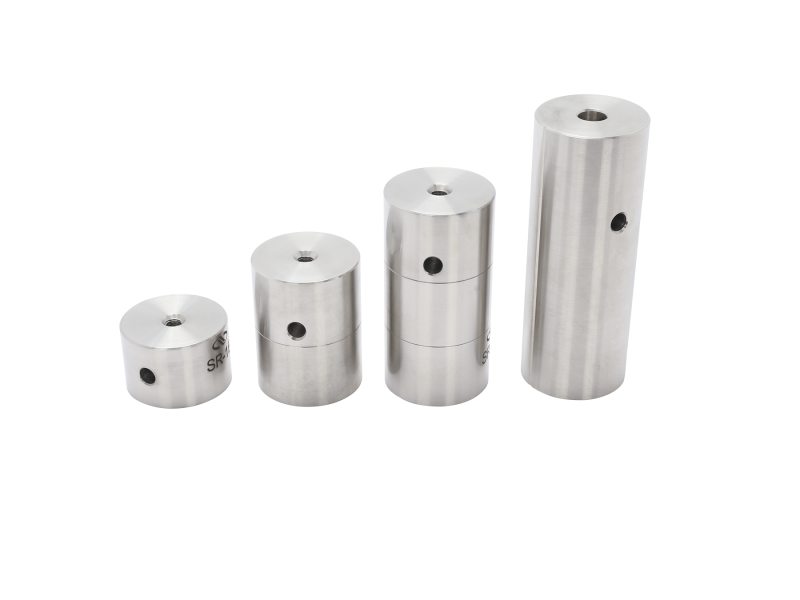

1.5 in. (38.1 mm) diameter optical post spacers and extenders increase the height of an SR-Z series magnetic pedestal pillar or SR-B non-magnetic mounting base to be closer to the required optical height without sacrificing stability. Spacers as thin as 1/16th of an inch (1.6 mm) and extensions as long as 4 in. (101.6 mm) are available, all made from solid stainless steel. In particular, the 4 in. (101.6 mm) SR-4P extension post features a "V" groove that allows the SR-SC sliding clamp with its spring-loaded ball detent to ride linearly along the rod without unintentional rotation.

Use standalone or as pedestal extension
Index marks allow quick height reference for easy identification
Solid steel construction

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Height	Thread Type	Availability	Price	Brand
SR-0.063-S Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR $14 Show	SR-0.063-S Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	1.0	1.0	Post Spacer	1.6 mm	1/4-20 (M6) CLR	Show	$14	Newport
SR-0.125-S Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR $15.10 Show	SR-0.125-S Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	1.0	2.0	Post Spacer	3.2 mm	1/4-20 (M6) CLR	Show	$15.10	Newport
SR-0.25-S Pedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR $16.90 Show	SR-0.25-S Pedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	1.0	3.0	Post Spacer	6.35 mm	1/4-20 (M6) CLR	Show	$16.90	Newport
SR-0.50-S Pedestal Pillar Spacer, 0.50 in. Thick, 1.5 in. Diameter, 1/4-20 CLR $18.20 Show	SR-0.50-S Pedestal Pillar Spacer, 0.50 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	1.0	4.0	Post Spacer	12.7 mm	1/4-20 (M6) CLR	Show	$18.20	Newport
SR-1E Optical Post, 1.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread $29 Show	SR-1E Optical Post, 1.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	1.0	5.0	Extension Post	25.4 mm	1/4-20	Show	$29	Newport
SR-2E Optical Post, 2.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread $34 Show	SR-2E Optical Post, 2.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	1.0	6.0	Extension Post	50.8 mm	1/4-20	Show	$34	Newport
SR-3E Optical Post, 3.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread $41 Show	SR-3E Optical Post, 3.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	1.0	7.0	Extension Post	76.2 mm	1/4-20	Show	$41	Newport
SR-4P Optical Post, 4.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread $72 Show	SR-4P Optical Post, 4.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	1.0	8.0	Grooved Extension Post	101.6 mm	1/4-20	Show	$72	Newport
M-SR-1E Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread $29 Show	M-SR-1E Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread	METRIC	1.0	9.0	Extension Post	25.4 mm	M6	Show	$29	Newport
M-SR-2E Optical Post, 50.8 mm Height, 38.1 mm Diameter, M6 Thread $34 Show	M-SR-2E Optical Post, 50.8 mm Height, 38.1 mm Diameter, M6 Thread	METRIC	1.0	10.0	Extension Post	50.8 mm	M6	Show	$34	Newport
M-SR-3E Optical Post, 76.2 mm Height, 38.1 mm Diameter, M6 Thread $41 Show	M-SR-3E Optical Post, 76.2 mm Height, 38.1 mm Diameter, M6 Thread	METRIC	1.0	11.0	Extension Post	76.2 mm	M6	Show	$41	Newport
M-SR-4P Optical Post, 101.6 mm Height, 38.1 mm Diameter, M6 Thread $72 Show	M-SR-4P Optical Post, 101.6 mm Height, 38.1 mm Diameter, M6 Thread	METRIC	1.0	12.0	Grooved Extension Post	101.6 mm	M6	Show	$72	Newport

Show All

Features

Extension Posts and Spacers for Customizable Heights

Threaded extension posts and spacers allow mounting certain optics at non-standard heights. These stainless steel constructed extension posts and spacers provide a wide variety of options for building posts to mount optical components at customizable heights.

Specially Designed Groove and Peg Extension Post

SR-4P is a special purpose extension post for use with the SR-SC sliding clamp. It features a "V" groove along the axial length of the rod to support the sliding SR-SC clamp and its spring-loaded linear motion. This prevents undesired rotation during alignment, and with Newport’s patented peg fastener, two SR-4P can be aligned as a composite system.
