Compare Model Drawings, CAD & Specs Type Length Height Thread Type Availability Price
9032
$39
9032 Optical Rail 39.4 mm 4.6 mm 1-4-20 (M6) C-Bore $39
9022NF
$41
9022NF Optical Rail 63.5 mm 4.6 mm 1-4-20 (M6) C-Bore $41
9023NF
$74
9023NF Optical Rail 152.4 mm 4.6 mm 1-4-20 (M6) C-Bore $74
9020NF
$118
9020NF Optical Rail 304.8 mm 4.6 mm 1-4-20 (M6) C-Bore $118
9025NF
$36
9025NF Post Carrier 19.05 mm 12.7 mm 8-32 and 1/4-20 Thru $36
9035
$41
9035 Post Carrier 19.05 mm 12.7 mm 1/4-20 (M6) CLR $41
9036
$84
9036 Riser Carrier, Pint-Sized 39.4 mm 12.7 mm 8-32 and 1/4-20 $84
9036-M
$84
9036-M Riser Carrier, Pint-Sized 39.4 mm 12.7 mm M4 and M6 $84
9026
$90
9026 Riser Carrier 63.5 mm 12.7 mm 8-32 and 1/4-20 $90
9026-M
$90
9026-M Riser Carrier 63.5 mm 12.7 mm M4 and M6 $90
9027
$103
9027 Riser Carrier 63.5 mm 25.4 mm 8-32 and 1/4-20 $103
9027-M
$103
9027-M Riser Carrier 63.5 mm 25.4 mm M4 and M6 $103
9039
$133
9039 90° Carrier, Pint-Sized 39.4 mm 45.7 mm 8-32 and 1/4-20 $133
9039-M
$133
9039-M 90° Carrier, Pint-Sized 39.4 mm 45.7 mm M4 and M6 $133
9029
$133
9029 90° Carrier 63.5 mm 69.9 mm 8-32 and 1/4-20 $133
9029-M
$133
9029-M 90° Carrier 63.5 mm 69.9 mm M4 and M6 $133

Features

Low Profile Rail System Mounting

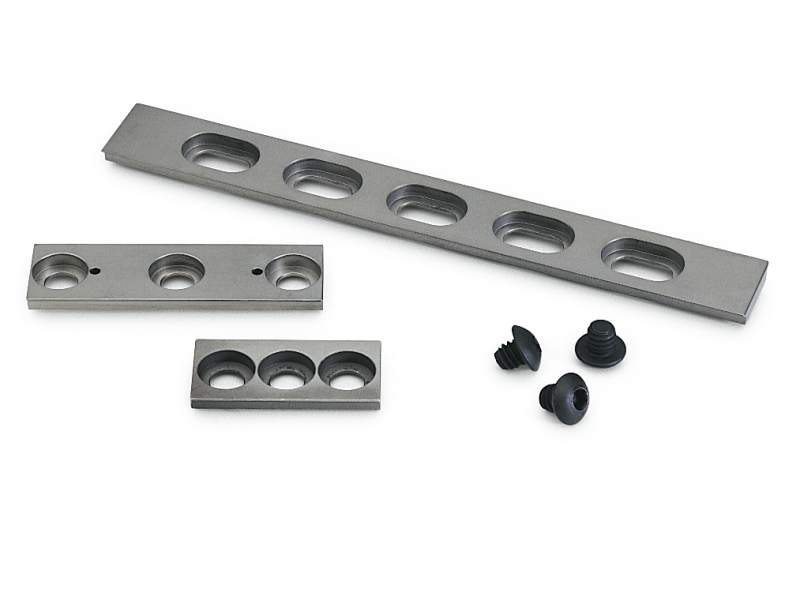

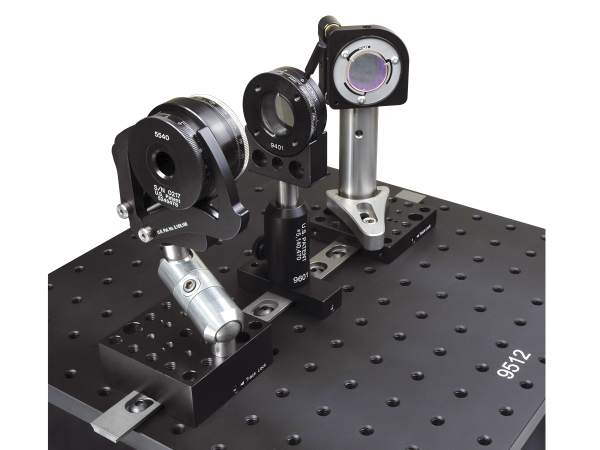

The e•z•Trac™ Optical Rail System is the lowest profile optical rail system. The rails themselves sit just 0.18 in. (4.6 mm) high and mount to optical tables or breadboards by a surface-mount design. Carriers sit flush with the same surface where the rail is attached letting the mounting surface profile sit at only 0.5 in. (12.7 mm) high. The dovetail design ensures carriers clamp down with exceptional stability Each e•z•Trac rail ships with both 1/4-20 and M6 button-head screws.

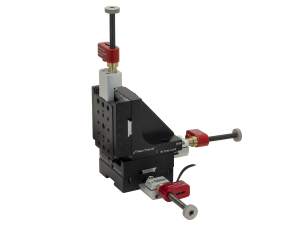

Compatible with Triple Divide Translation Stages

The e•z•Trac™ rails provide the linear translation to our standard and pint-sized Triple-Divide translation stages, making them fully compatible with both. Precision alignment holes guarantee orthogonality when used with the translation stages.
