| Models |
|
|
|
|---|---|---|---|
| Coarse Travel | 360° | 360° | |
| Diameter | 66.0 mm | 66.0 mm | |
| Graduations | 2° | 2° | |
| Graduations, Vertical | 0.01 mm | 0.01 mm | |
| Load Capacity | 667 N | 667 N | |
| Sensitivity | 3600 arc sec | 3600 arc sec | |
| Thread Type | 8-32 and 1/4-20 | M4 and M6 |

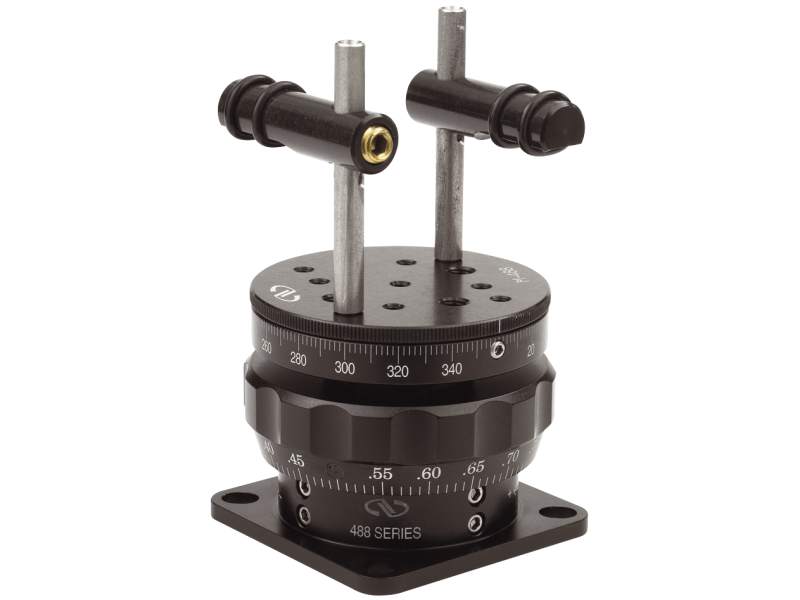

A scalloped adjustment ring provides non-rotating vertical travel over 1 in. (25.4 mm) of travel with 0.01 mm graduations. A recessed locking screw securely fixes the mount at the desired height to prevent inadvertent adjustments.
The mounting platform offers a generous array of mounting holes for attaching other components. In addition, prisms and beamsplitter cubes up to 2 in. (50.8 mm) high can be easily and securely held by the removable clamps that thread into the top of the platform.
The lockable, rotating platform has a knurled rim for coarse adjustment with graduations every 2°.
