| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
BC-5 Base Clamp, Adjustable-Height, Short, 1/4-20 Tapped Holes |
|
$12.70 |
|
|||
|
BC-5-PK Base Clamp Pack, Adjustable-Height, Short, 1/4-20 Tapped Holes, Qty 10 |
|
$116.00 |
|
|||
|
BC-6 Base Clamp, Adjustable-Height, Long, 1/4-20 Tapped Holes |
|
$14.00 |
|
|||
|
BC-6-PK Base Clamp Pack, Adjustable-Height, Long, 1/4-20 Tapped Holes, Qty 10 |
|
$126.00 |
|
|||
|
M-BC-5 Base Clamp, Adjustable-Height, Short, M6 Tapped Holes |
|
$12.70 |
|
|||
|
M-BC-5-PK Base Clamp Pack, Adjustable-Height, Short, M6 Tapped Holes, Qty 10 |
|
$116.00 |
|
|||
|
M-BC-6 Base Clamp, Adjustable-Height, Long, M6 Tapped Holes |
|
$14.00 |
|
|||
|
M-BC-6-PK Long Base Clamp Pack, Adjustable-Height, M6 Tapped Holes, Metric, Pack of 10 |
|
$126.00 |
|

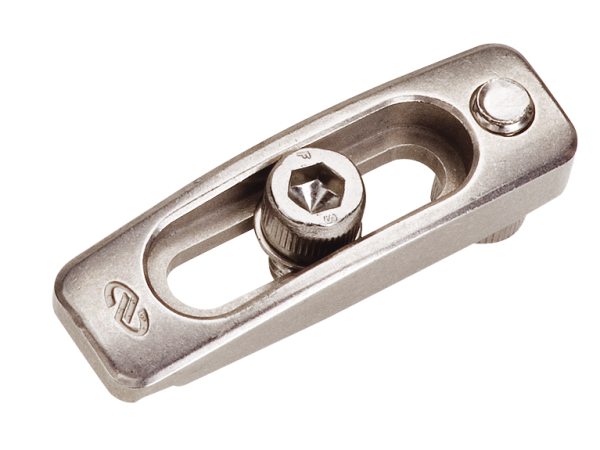

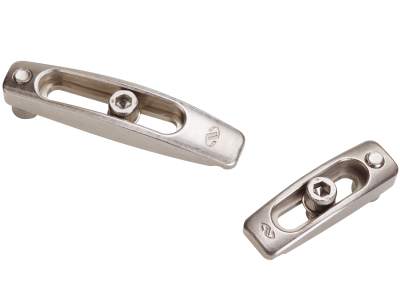

Our base clamps are made from stainless steel, offering superior rigidity and thermal stability over traditional aluminum designs. The included 1/4-20 (M6) cap screw at the end enables height adjustment.
| Models | Coarse Positioning | Height Adjustment |
|---|---|---|
| (M-) BC-5 | 0.9 in. (22.9 mm) | 0.26 in. (6.3 mm) |
| (M-) BC-6 | 1.42 in. (36 mm) | 0.38 in. (9.5 mm) |
