Overview

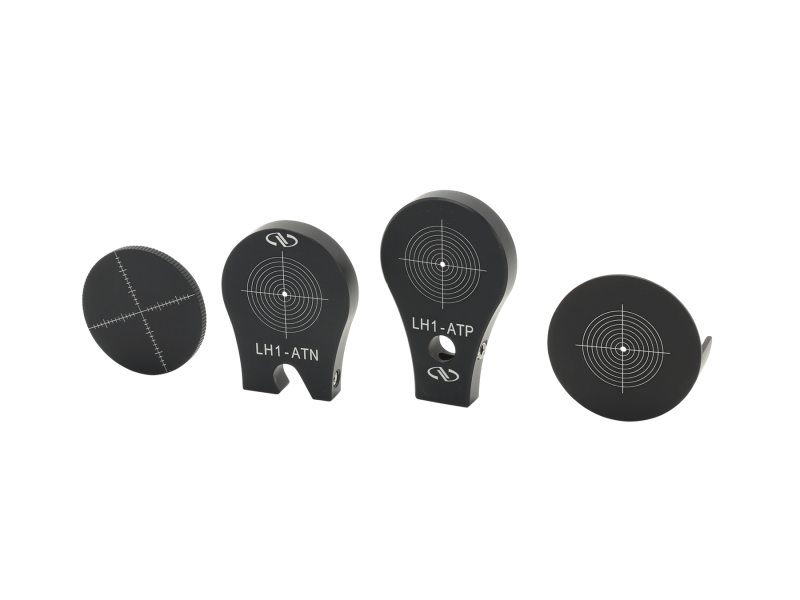

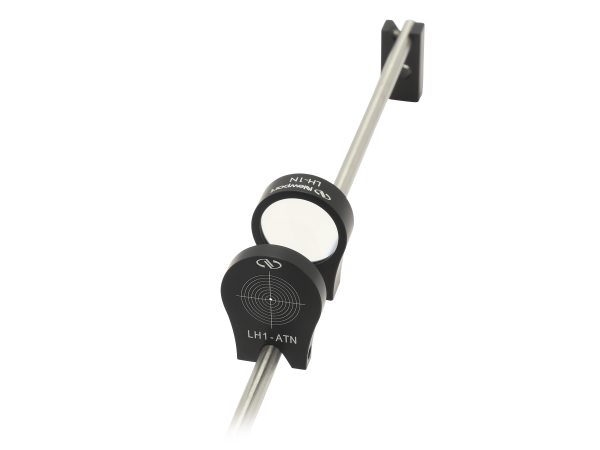

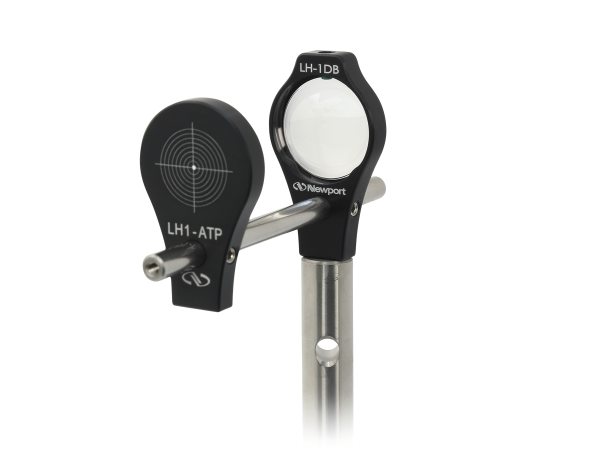

The lens mount alignment targets are used to aid in aligning visible beams. Designed for our A-Line Lens Alignment System, LH1-AT drops on top of any 1" fixed lens mounts, whereas LH1-ATN can be inserted at any position in the system. LH1-ATP has maximized flexibility for use in the A-Line system with a guide-rod or any lens assembly when mounted on an optical pedestal. AT-SM1 can be threaded into a lens mount or lens tube with SM1 (1.035-40) thread. OC1-AT is compatible with our Optics Cage Plus System.

1 mm through hole in the center
1 mm graduated XY axes and 2 mm incremental concentric circles
Simply drop into assembly to aid in alignment

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Availability	Price	Brand
AT-SM1 Alignment Target, SM1 Thread, A-Line & Lens Tube $23.00 Show	AT-SM1 Alignment Target, SM1 Thread, A-Line & Lens Tube	UNIVERSAL	1.0	0.0	Alignment Target	Show	$23.00	Newport
LH1-AT Alignment Target, Hanging, A-Line $31.00 Show	LH1-AT Alignment Target, Hanging, A-Line	UNIVERSAL	1.0	0.0	Alignment Target	Show	$31.00	Newport
LH1-ATN Alignment Target, Insertable, A-Line $33.00 Show	LH1-ATN Alignment Target, Insertable, A-Line	UNIVERSAL	1.0	0.0	Alignment Target	Show	$33.00	Newport
LH1-ATP Alignment Target, Post Mount, 8-32, A-Line $36.00 Show	LH1-ATP Alignment Target, Post Mount, 8-32, A-Line	IMPERIAL	1.0	0.0	Alignment Target	Show	$36.00	Newport
M-LH1-ATP Alignment Target, Post Mount, M4, A-Line $36.00 Show	M-LH1-ATP Alignment Target, Post Mount, M4, A-Line	METRIC	1.0	0.0	Alignment Target	Show	$36.00	Newport
OC1-AT Alignment Target, Drop-in, Optics Cage Plus $18.20 Show	OC1-AT Alignment Target, Drop-in, Optics Cage Plus	UNIVERSAL	1.0	1.0	Alignment Target	Show	$18.20	Newport

Show All

Features

Graduations and Through Hole for Visible Laser Alignment

The alignment targets are made of anodized aluminum. They feature laser-engraved XY axes with 1 mm graduations and concentric circles with 2 mm incremental diameters for ease of visual alignment of the beam. A 1 mm center through-hole provides feedback when the beam is aligned. The targets can be inserted into an optical system during alignment then easily removed without disturbing the alignment.
