Compare Model Drawings, CAD & Specs Type Fiber Connector Fiber Type Typical Insertion Loss Availability Price
F-BFTA-S-FC
$570
F-BFTA-S-FC Bare Fiber Adapter FC/PC Single-mode 9/125 µm 0.5 dB $570
F-BFTA-S-FCAPC
$590
F-BFTA-S-FCAPC Bare Fiber Adapter FC/APC Single-mode 9/125 µm 0.5 dB $590
F-BFTA-S-SC
$560
F-BFTA-S-SC Bare Fiber Adapter SC/PC Single-mode 9/125 µm 0.5 dB $560
F-BFTA-S-ST
$550
F-BFTA-S-ST Bare Fiber Adapter ST Single-mode 9/125 µm 0.5 dB $550

Features

Turn-Key Adapter System

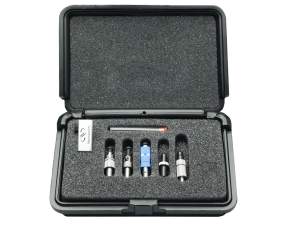

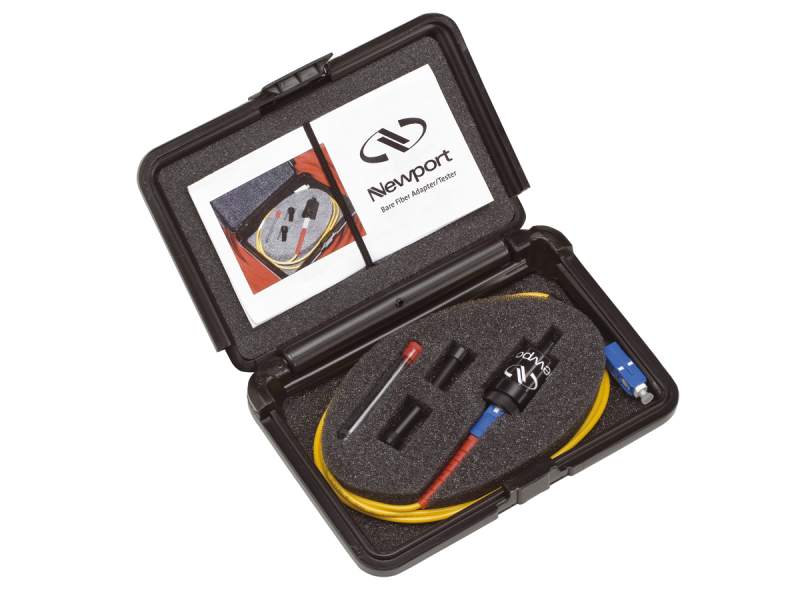

System includes Patch Cable, Bare Fiber Test Adapter, and 2 Disposable Matching Gel Cartridges. Simply connect the patch cable to your test equipment and insert bare fiber into the end of the test module. Connections are suitable for many testing applications with results similar to a standard terminated piece of fiber.

Quick Install with No Mess

Designed to quickly connect to unterminated (bare fiber) for testing, servicing, or communication requirements. No messy gel applicators or reservoirs to fill. Simply strip your fiber and insert.

Single-mode and Multimode Adapters Available with Many Connector Options

Choose from single-mode or multimode bare fiber test adapters with a handful of connector options.

Resources

Manuals
