These free space photoreceivers consist of high speed Si or InGaAs photodetectors with a built-in amplifier with up to 26 dB of gain. They are excellent for viewing rapid modulation of low-power CW lasers or other light sources in the µW regime. The detectors are AC coupled and feature a bandwidth ranging from 1.2 GHz up to 1.5 GHz.
Additional CAD file downloads are not available for this product.
biased-free-space-optical-receivers - Drawings
Additional drawings are not available for this product.
Specifications
Models
818-BB-21A
818-BB-30A
Bandwidth
30 kHz to 1.2 GHz
30 kHz to 1.5 GHz
Detector Diameter
0.4 mm
0.1 mm
Detector Material
Silicon
InGaAs
Detector Type
PIN
PIN
Wavelength Range
300-1100 nm
1000-1600 nm
Acceptance Angle
10°
20°
Bias Voltage
24 V
24 V
Maximum Conversion Gain

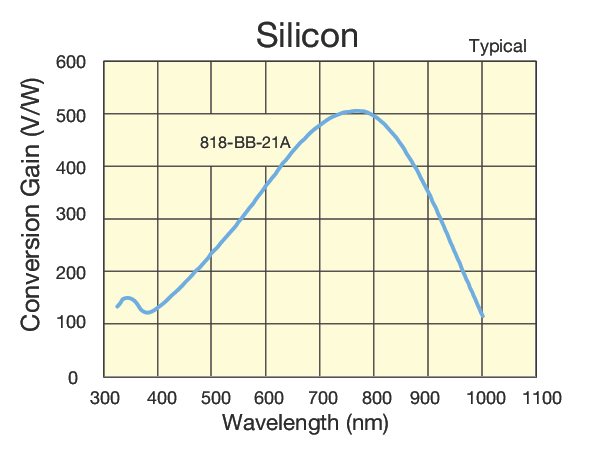

450 V/W at 830 nm

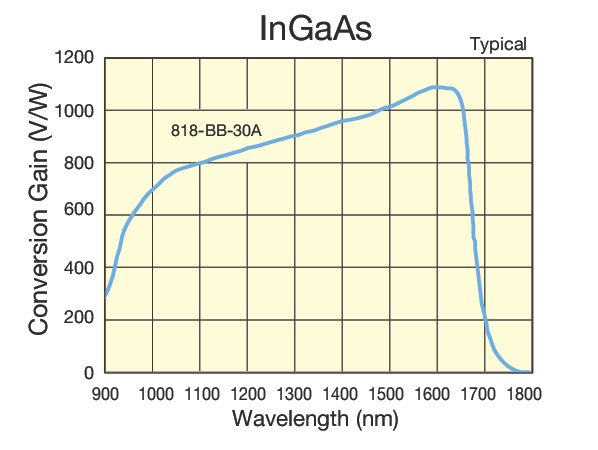

900 V/W at 1300 nm
Rise Time
500 ps
400 ps
NEP
60 pW/√Hz
30 pW/√Hz
Output Connector
BNC
BNC
Output Impedance
50 Ω
50 Ω
Power Requirements
Includes AC adapter
Includes AC adapter
Thread Type
8-32 and M4
8-32 and M4
Showing 1 to 14 of 14 entries
Features
Silicon Optical Receiver
The 818-BB-21A features a 0.4 mm diameter silicon photodetector with a wavelength range of 300 to 1100 nm. This 24 V biased free space receiver has an acceptance angle of 10°. The Amplified PIN Photodetector utilizes the photovoltaic effect to convert optical power into an electrical current.
InGaAs Optical Receiver
The 818-BB-30A features a 0.1 mm diameter InGaAs photodetector with a wavelength range of 1000 to 1600 nm. This 24 V biased free space receiver has an acceptance angle of 20°. The Amplified PIN Photodetector utilizes the photovoltaic effect to convert optical power into an electrical current.
Measure Pulsewidth or Frequency Response
These high speed detectors make a great free space front end for an scope or spectrum analyzer. When terminated into 50Ω into an oscilloscope, the pulsewidth of a laser can be measured. When terminated into a spectrum analyzer, the frequency response of a laser can be measured.
Optical Post Mounting
An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.
Handle With ESD Care
These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP , when unpacking and handling these devices.
