Compare Model Drawings, CAD & Specs Availability Price
Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load
$316.00
Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load
$196.00
Micrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load
$213.00
Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load
$230.00
Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load
$239.00
Micrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load
$256.00
Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load
$295.00
Micrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load
$474.00
Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load
$599.00
Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load
$317.00
Micrometer Head, Standard Resolution, 80mm Travel, 100 lb. Load
$774.00

Specifications

Features

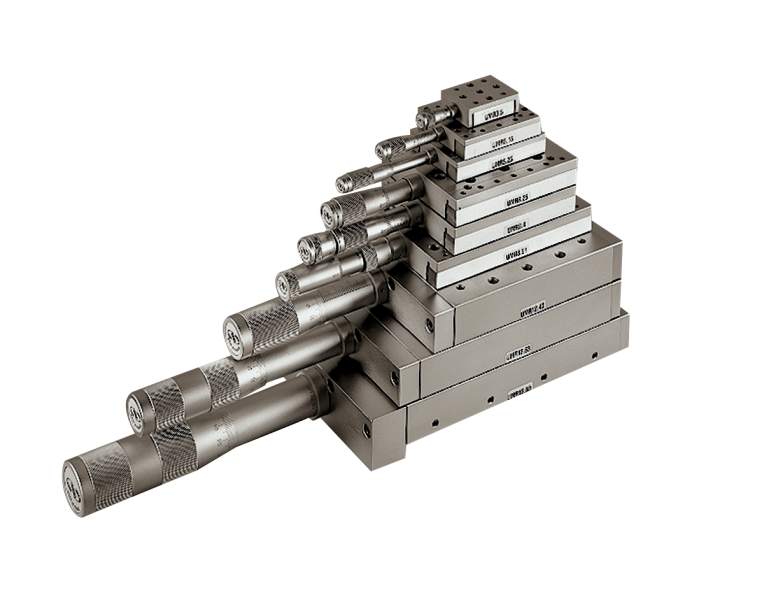

Not Just for UMR & MVN Series Stages

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.

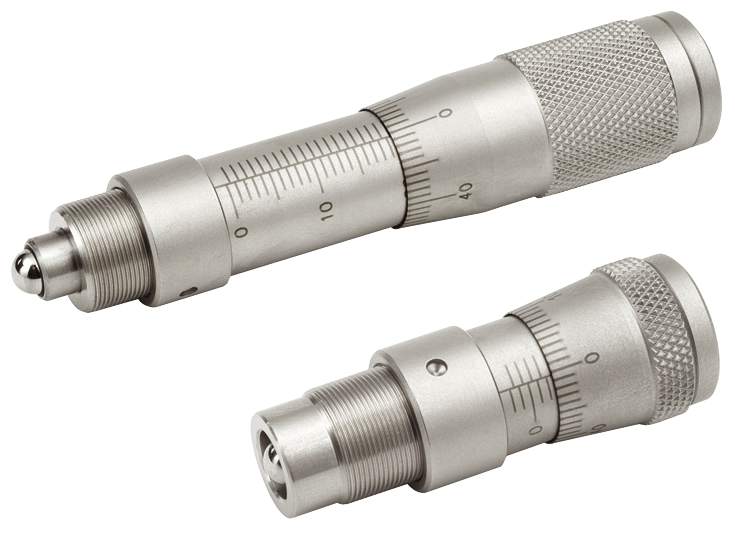

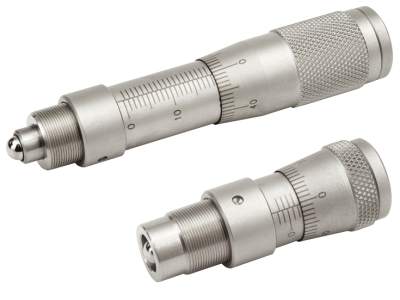

Threaded Lock Collar Advantages

The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.

Compatible Newport Stages & Mounts

BM Series Micrometers are compatible with the following manual stages and mounts.

  • UMR3 Series
  • UMR5 Series
  • UMR8 Series
  • UMR12 Series
  • MVN Series
  • TGN Series
  • SL Series
  • SL-A Series
