Overview

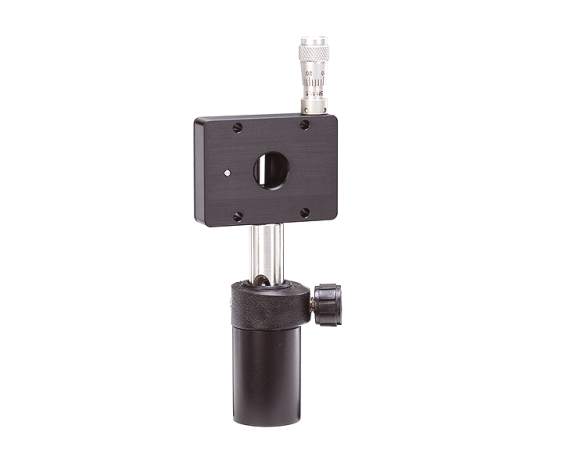

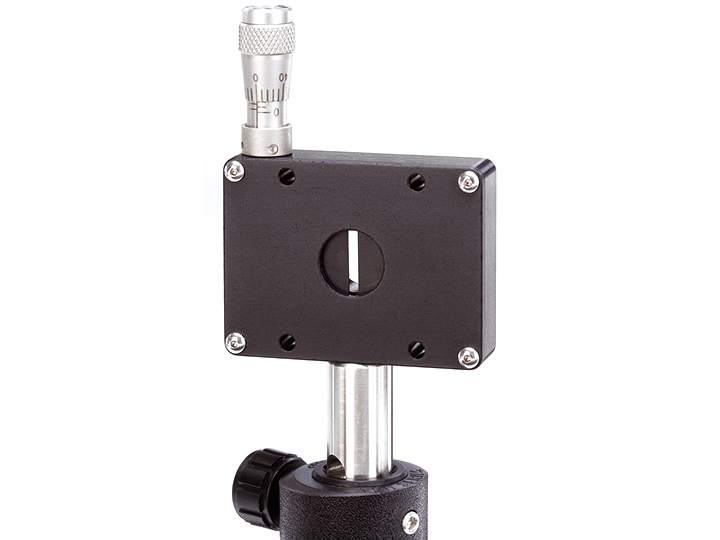

Our compact adjustable width slit provides precise micrometer-driven adjustment of two blades centered equally about a 0.5-inch (12.7 mm) through-hole. The slit width ranges from fully closed to 0.20 inch (5 mm) and is designed so that the micrometer reading corresponds to the actual slit width.

Slit width from fully closed to 0.20 in. (5 mm)
Micrometer reading corresponds to actual slit width
Face plate and post mounting holes
English or metric mounting thread versions

See All Features

Products

Show entries

Search:

		Compare	Model	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		M-SV-0.5 Adjustable Width Slit, Micrometer Driven, M4 Thread, Metric $347.00 Show	M-SV-0.5 Adjustable Width Slit, Micrometer Driven, M4 Thread, Metric	0.0		0.0	Show		$347.00		Newport
		SV-0.5 Adjustable Width Slit, Micrometer Driven, 8-32 Thread $347.00 Show	SV-0.5 Adjustable Width Slit, Micrometer Driven, 8-32 Thread	0.0		0.0	Show		$347.00		Newport

Showing 1 to 2 of 2 entries

Previous1Next

Features

Ideal for OEM Optical Assemblies

The slim profile of the mount and four face-plate mounting holes make it ideal for use with compact and OEM optical assemblies. An 8-32 (M4) threaded mounting hole located on the bottom of the unit is compatible with our standard mounting posts and pedestals.
