| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
ULM Cylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed |
|
$136 |
|
|||
|
ULM-TILT Cylindrical Laser Mount, 1.0-1.75 in., High-Resolution AJS Adjusters |
|
$361 |
|
|||
|
ULM-TILT-M Cylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers |
|
$491 |
|

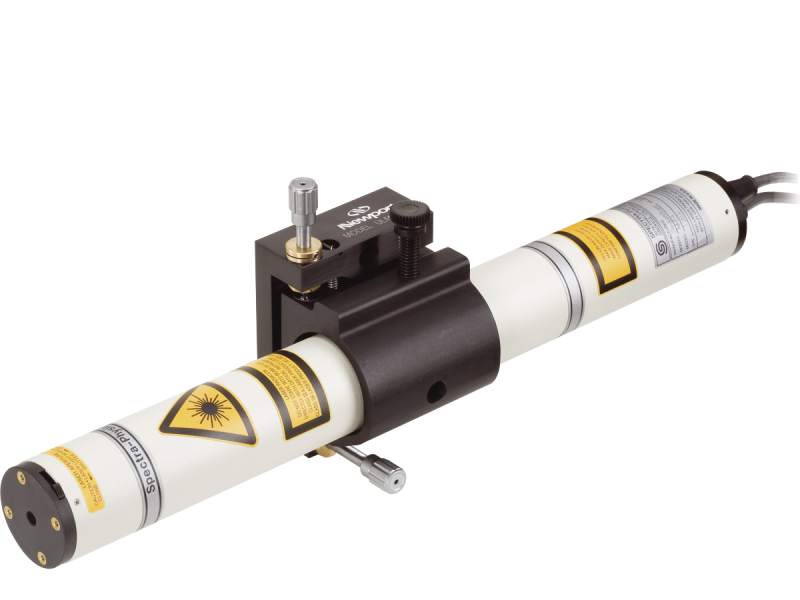

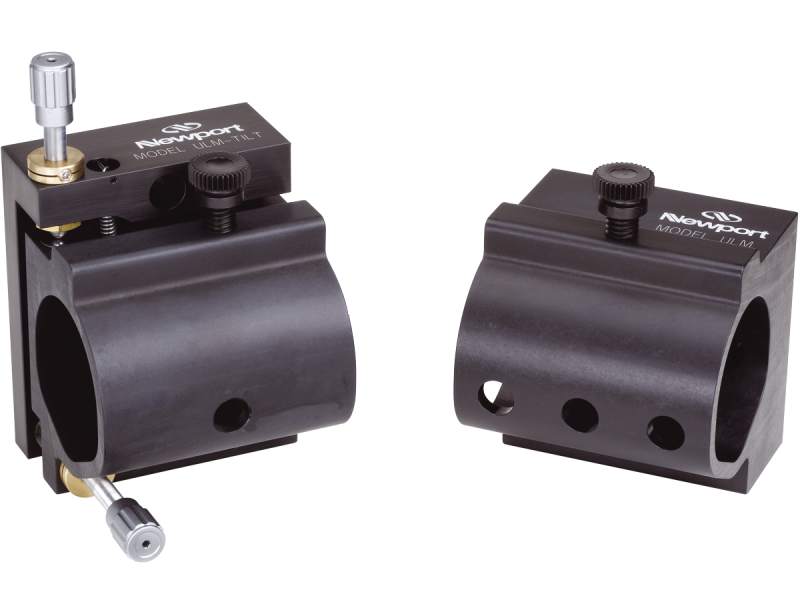

The ULM-TILT mount provides two axes of precision angular adjustment using a stable kinematic three-point design for drift-free pointing of laser heads and other cylindrical objects. It features hardened and polished ball and V-groove kinematic pivots to assure repeatable angular orientation and thermal stability. Its high-resolution adjustment screws act on hardened carbide inserts for smooth adjustment, minimal cross coupling and accurate beam placement. Where direct reading of position is desired, micrometer-based versions are available. The ULM-TILT can be mounted to other Newport mounts, rod clamps and positioners via two clearance-mounting holes.

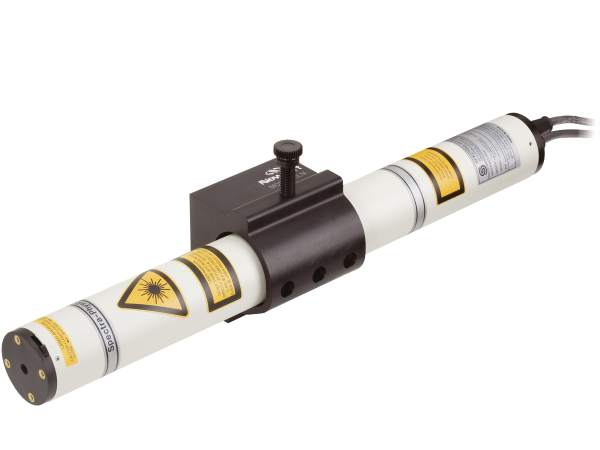

The ULM is a fixed, non-adjustable laser mount that may be bolted to other components via three horizontal clearance holes.
All the ULM Cylindrical Laser Mounts can be mounted to optical rod clamps, other Newport mounts or positioners via the clearance-mounting holes.

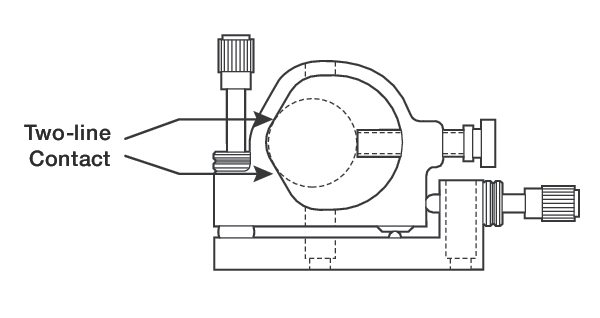

To prevent wobble, the laser head is held securely by a nylon thumbscrew against two full-length line contacts formed by a V-groove.
