Protective Windows for High Power Fiber Lasers

Protective Windows for High Power Fiber Lasers

Products
Features
Resources
Contact Us

Overview

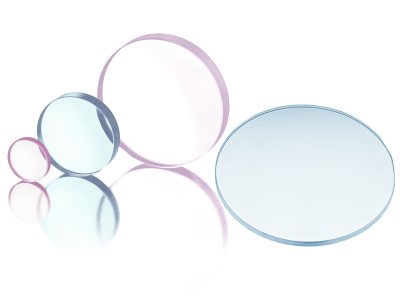

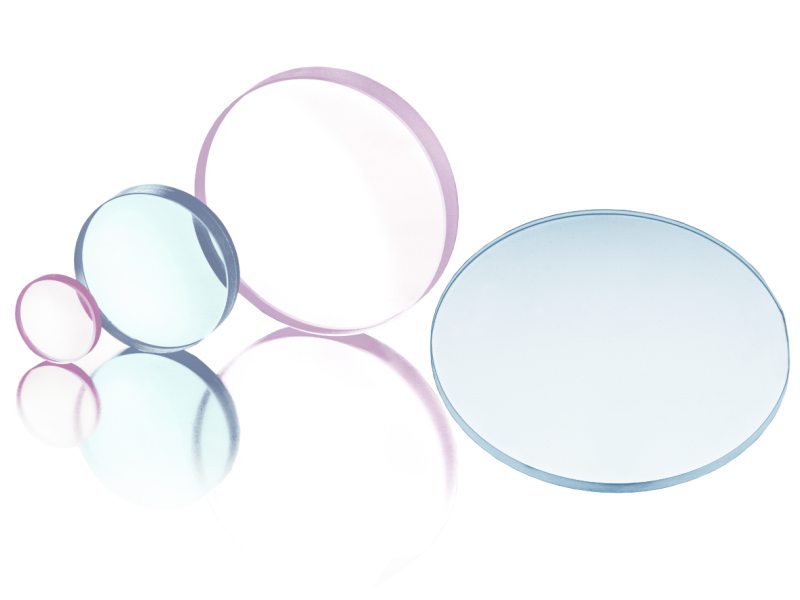

These high quality fused silica parallel windows are designed for use with high power fiber lasers. OEM compatible versions are available for many suppliers.

High LIDT coatings 20J / cm²
Low absorption 10-50 ppm
High quality fused silica substrates

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Diameter	Thickness	OEM Compatibility	Availability	Featured Item	Price		Brand
		632251-117 Fiber Laser Protective Window, Fused Silica, 34 mm, 5.1 mm Thick, 1030-1090 nm $83 Show	632251-117 Fiber Laser Protective Window, Fused Silica, 34 mm, 5.1 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	34.0 mm	5.1 mm	Trumpf^®	Show		$83		Newport
		632252-117 Fiber Laser Protective Window, Fused Silica, 22.4 mm, 4.0 mm Thick, 1030-1090 nm $39 Show	632252-117 Fiber Laser Protective Window, Fused Silica, 22.4 mm, 4.0 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	22.4 mm	4.0 mm	Precitec^®	Show		$39		Newport
		632755-337 Fiber Laser Protective Window, Fused Silica, 32 mm, 6.5 mm Thick, 1030-1090 nm $63 Show	632755-337 Fiber Laser Protective Window, Fused Silica, 32 mm, 6.5 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	32.0 mm	6.5 mm	Salvagnini^®	Show		$63		Newport
		632811-117 Fiber Laser Protective Window, Fused Silica, 24 mm, 5 mm Thick, 1030-1090 nm $44 Show	632811-117 Fiber Laser Protective Window, Fused Silica, 24 mm, 5 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	24.0 mm	5.0 mm	Trumpf^®	Show		$44		Newport
		632830-117 Fiber Laser Protective Window, Fused Silica, 30 mm, 5.0 mm Thick, 1030-1090 nm $61 Show	632830-117 Fiber Laser Protective Window, Fused Silica, 30 mm, 5.0 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	30.0 mm	5.0 mm	Trumpf^®	Show		$61		Newport
		632851-117 Fiber Laser Protective Window, Fused Silica, 36 mm, 5.0 mm Thick, 1030-1090 nm $52 Show	632851-117 Fiber Laser Protective Window, Fused Silica, 36 mm, 5.0 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	36.0 mm	5.0 mm	Bystronic^®	Show		$52		Newport
		632958-117 Fiber Laser Protective Window, Fused Silica, 38.1 mm, 5 mm Thick, 1030-1090 nm $56 Show	632958-117 Fiber Laser Protective Window, Fused Silica, 38.1 mm, 5 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	38.1 mm	5.0 mm	CY^®	Show		$56		Newport
		633411-117 Fiber Laser Protective Window, Fused Silica, 37 mm, 9 mm Thick, 1030-1090 nm $72 Show	633411-117 Fiber Laser Protective Window, Fused Silica, 37 mm, 9 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	37.0 mm	7.0 mm	Precitec^®	Show		$72		Newport
		634831-117 Fiber Laser Protective Window, Fused Silica, 45 mm, 3.0 mm Thick, 1030-1090 nm $72 Show	634831-117 Fiber Laser Protective Window, Fused Silica, 45 mm, 3.0 mm Thick, 1030-1090 nm	UNIVERSAL	0.0	1.0	0.0		0.0	45.0 mm	3.0 mm	Amada^®	Show		$72		Newport

Show All

Specifications

Material

Fused Silica
Antireflection Coating

1030 to 1090 nm
Reflectance

<0.1% to 0.2%
Transmittance

>99.6% @ 1030 nm
>99.9% @ 1064 nm
>99.6% @ 1070-1080 nm

Thermal Expansion Coefficient

∆n/∆T 9.6×10^-6 K^-1
Damage Threshold

20J/cm²
Absorption

10-50 ppm
OEM Compatibility

Various

Features

Guaranteed Premium Quality. Strict QA Inspections.

Providing you with premium quality products comes with a massive responsibility. That’s why we perform strict post-production quality tests. From inspection, throughout assembly and packing, the optics are handled in a class 1,000 clean room.
