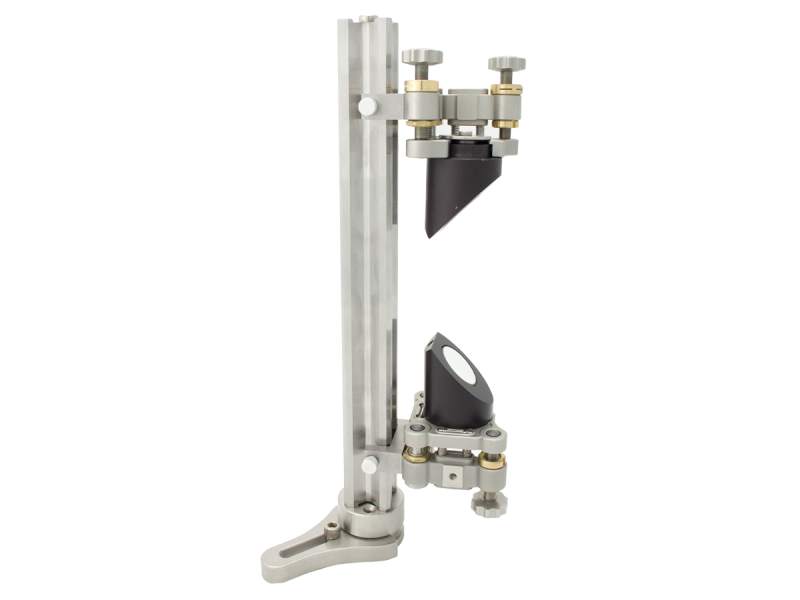

High stability rail periscopes feature Suprema series stainless steel kinematic mounts and a rail-post for excellent stability. The design also prevents inadvertent rotation during beam adjustment. 45-degree fixed angle mirror holders guide the beam and a magnetic pedestal base with an impressive 12 lb of holding force holds rough alignments in place prior to securing the base to the optical surface.
26 mm square stainless steel rail-post prevents inadvertent rotation
82 to 225 mm optical axis height adjustment
Suprema® mirror mounts ensure top performance
Powerful magnetic pedestal base with 12 lb of holding force
Captive 45-degree mirror holders which will not fall out while being rotated
Additional CAD file downloads are not available for this product.
high-stability-rail-periscope - Drawings
Additional drawings are not available for this product.
Features

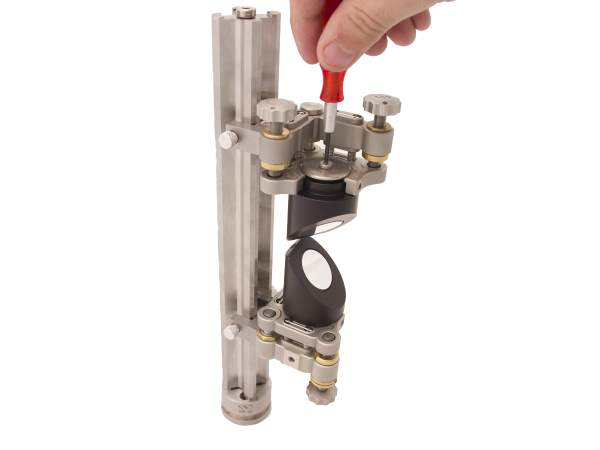

Rail Post Keeps Mirror Mounts Straight

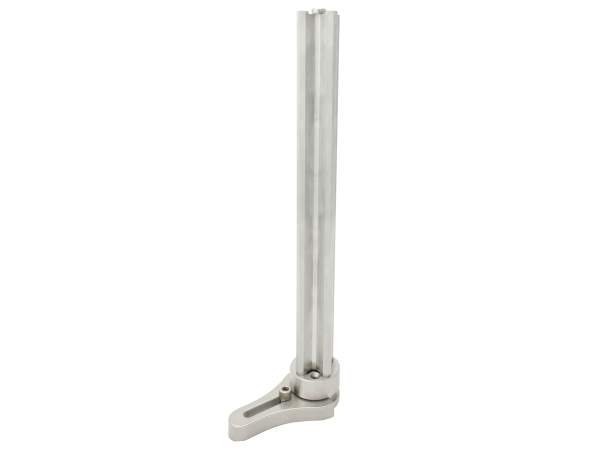

A stainless steel rail-post is used to prevent inadvertent rotation of the mirror mounts during beam height adjustment. The rail post also includes a powerful magnetic pedestal base with 12 lb. of holding force for safe placement prior to clamp down with an included fork.
Captive 45-degree Mirror Holders
Captive 45-degree mirror holders will not fall out while being rotated.

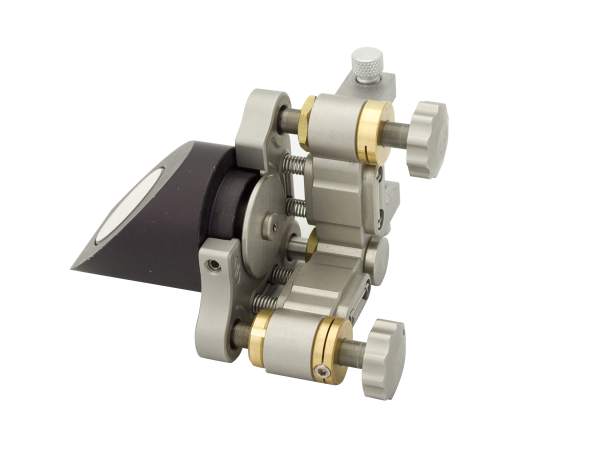

Suprema mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. Adjustment screws have 127 TPI threads for increased sensitivity and smooth adjustment feel. Two-actuator configurations have tip and tilt adjustability over a range of ± 7°.
