| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
CLD-1 Optical Mount Adapter, 25.4 mm, 0.6 in. Cylindrical Laser Diode | $42.00 |
|
||||
|
CLH-11 Collimator and Laser Diode Adapter, 11 mm, 1 inch Mirror Mounts |
|
$66.00 |
|
|||
|
CLH-9 Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts |
|
$41.00 |
|
|||
|
LDA-58 Optical Mount Adaptor, TO-56 to 1 in. Mount | $42.00 |
|
||||
|
LDA-90 Optical Mount Adaptor, TO-9 to 1 in. Mount | $42.00 |
|

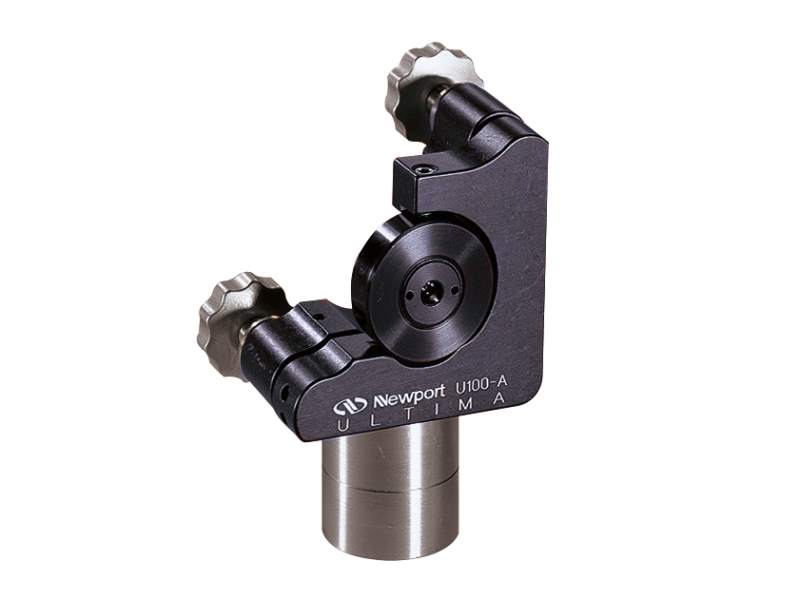

All the adaptors have an outside diameter of 1 in. (25.4 mm) and can be mounted in PERFORMA and ULTIMA optical mounts for tip-tilt.

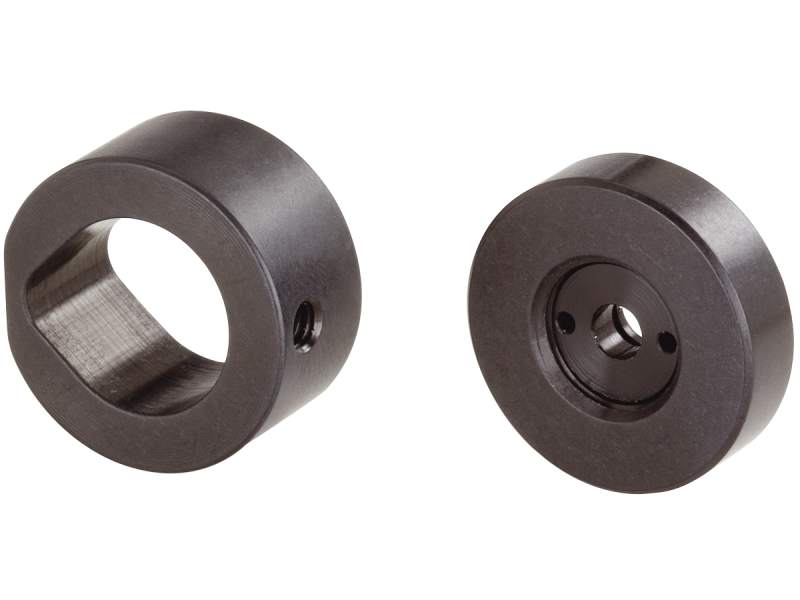

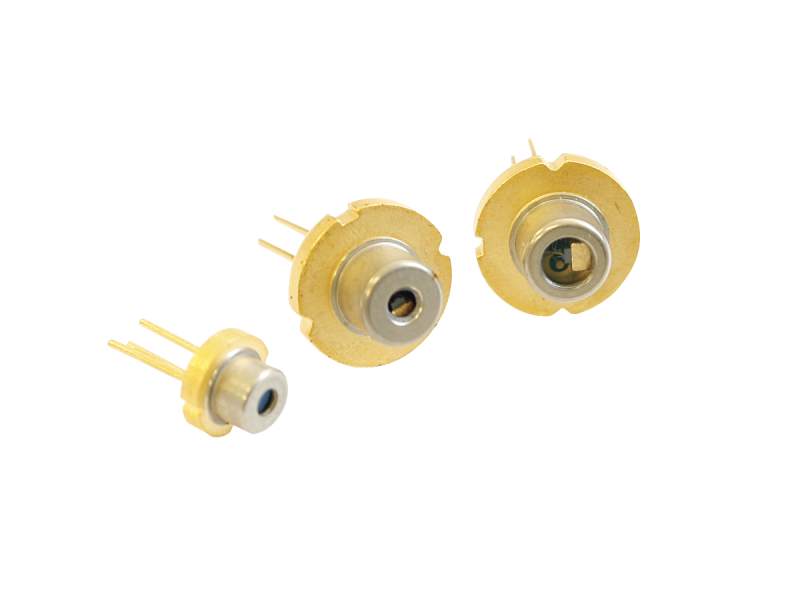

The LDA-58 TO-Can Laser Diode Adaptor securely mounts standard TO-5.6 TO cans. The LDA-90 TO-Can Laser Diode Adaptor securely mounts standard TO-9 TO cans. Both use a retaining ring to secure the laser diode.
The CLD-1 Cylindrical Diode Adaptor mounts cylindrical laser diode packages with an outside diameter up to 0.6 inch (15.2 mm).

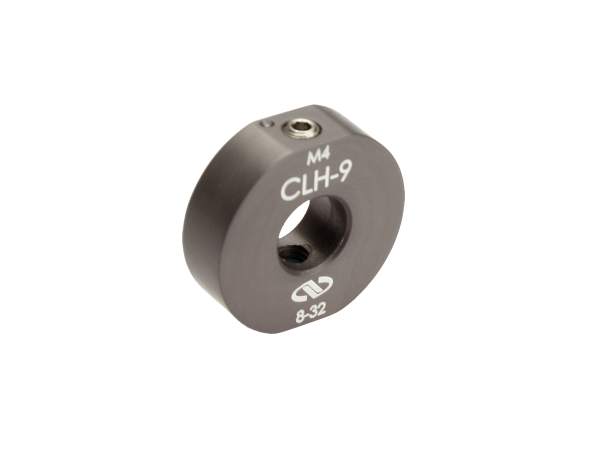

CLH-9 and CLH-11 allows fiber optic collimators and laser diode packages to be mounted into most 1 inch (25.4 mm) diameter mirror mounts.
