Compare Model Drawings, CAD & Specs Type Optic Diameter Thread Type Drive Type Angular Range Availability Price
8892-K
$1,187
8892-K Flipper Mount 25.4 mm 8-32 Motorized ±2 ° $1,187
8892-K-M
$1,199
8892-K-M Flipper Mount 25.4 mm M4 Motorized ±2 ° $1,199
8893-K
$1,802
8893-K Flipper Mount 50.8 mm 8-32 Motorized ±2 ° $1,802
8893-K-M
$1,802
8893-K-M Flipper Mount 50.8 mm M4 Motorized ±2 ° $1,802

Features

Stable and Repeatable Optic Placement

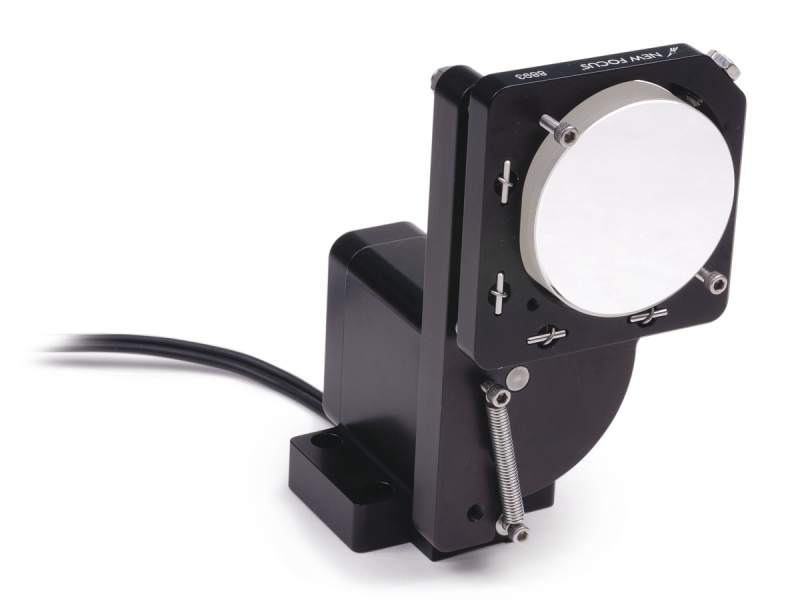

Originally designed for demanding commercial applications, our motorized flipper mount offers excellent stability and better than 25 µrad repeatability.

Adjustable and Lockable Optic Tilt

Optic tilt is adjusted with precision 80-pitch screws, and locking nuts preserve settings during flips.

Remote Control

The Flipper mount’s included hand pad allows simple thumb control from a distance or more remotely via its TTL interface.
