The MT-RS Polarizer Rotation Mount is a precision-crafted rotator for 0.5-inch diameter optics. It incorporates a 45:1 brass worm-gear drive and integrated slip clutch to provide both fine adjustment and quick coarse movement. An engraved scale provides 5° increments while the worm-gear drive provides approximately 0.5° positioning sensitivity.
The Model MT-RS is driven by a brass worm-gear drive and integrated slip clutch to provide both coarse and fine adjustment. An engraved scale provides 5° increments while the worm-gear drive provides approximately 0.5° positioning sensitivity.

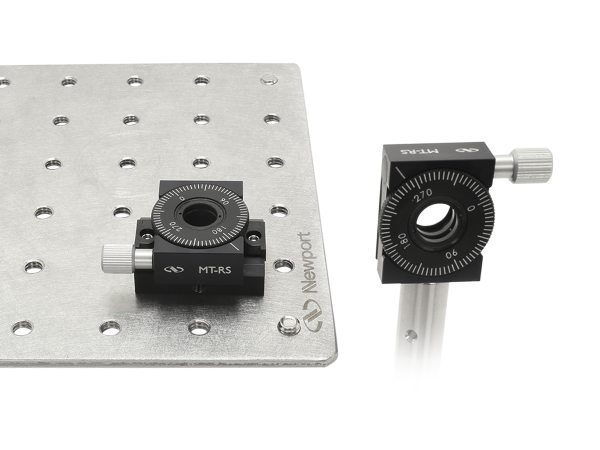

The MT Series Rotation Mounts can be supported by an optical post in a vertical configuration using the 8-32 (M4) tapped hole at the bottom. They also feature dovetail grooves at the backside and can be mounted horizontally with a
Product Series Overview
These rotation mounts are compatible with MT Series Compact Dove-Tail Linear Stages. They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. In the shown image, the MT-RS rotation mount is mounted to our MT-X manual stage using one side of the
