These multi-axis tilt platforms provide tilt and rotation adjustments for aligning optical components. They are kinematic in design, with hardened and polished contact points and spring-preloaded adjustments to eliminate backlash.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
36 Tilt and Rotation Platform, Includes SM-13 Micrometers, 1/4-20 Thread |
|
$696.00 |
|
|||
|
36S Tilt and Rotation Platform, Includes AJS Adjustment Screws, 1/4-20 Thread |
|
$583.00 |
|
|||
|
37 Tip/Tilt and Rotation Platform, SM-13 Micrometers, 1/4-20 Thread |
|
$965.00 |
|
|||
|
37S Tip/Tilt and Rotation Platform, AJS Adjustment Screws, 1/4-20 Thread |
|
$872.00 |
|
|||
|
39 Tip and Tilt Platform, Includes AJS Adjustment Screws, 1/4-20 Thread |
|
$266.00 |
|
|||
|
|
M-36 Tilt and Rotation Platform, Includes SM-13 Micrometers, M6 Thread |
|
$696.00 |
|
|||
|
|
M-36S Tilt and Rotation Platform, Includes AJS Adjustment Screws, M6 Thread |
|
$583.00 |
|
|||
|
|
M-37 Tip/Tilt and Rotation Platform, SM-13 Micrometers, M6 Thread |
|
$965.00 |
|
|||
|
|
M-37S Tip/Tilt and Rotation Platform, AJS Adjustment Screws, M6 Thread |
|
$872.00 |
|
| Models |
36 |
36S |
37 |
37S |
39 |
|---|---|---|---|---|---|
| Tip | ±4° | ±4° | -5 to 16° | ||
| Tilt | -4.3° to +7° | -4.3° to +7° | ±4° | ±4° | -3.5° to +14° |
| Rotation | ±2.5° | ±2.5° | ±4° | ±4° | |
| Sensitivity | 2 arc sec | 2 arc sec | 2 arc sec | 2 arc sec | 7 arc sec |
| Load Capacity | 67 N | 67 N | 67 N | 67 N | 67 N |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Thread Type 1 | 1/4-20 | 1/4-20 | 1/4-20 | 1/4-20 | 1/4-20 |
| Included Actuators |
Two
$100.00
Product Series Overview
|
Two
$38.00
Product Series Overview
|
Three
$100.00
Product Series Overview
|
Three
$38.00
Product Series Overview
|
Two 40 TPI adjustment screws |
M- metric versions have the same specifications as the imperial versions shown.

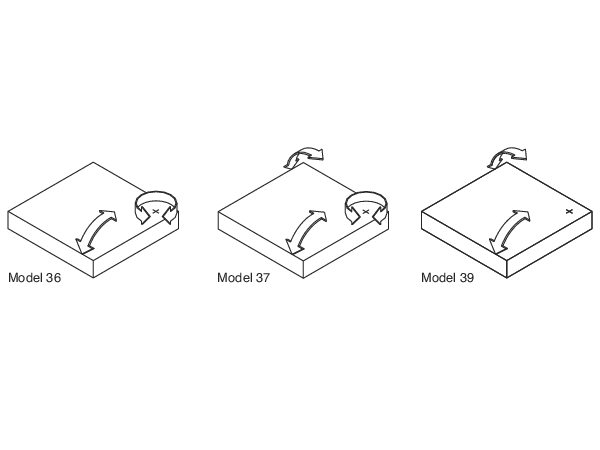

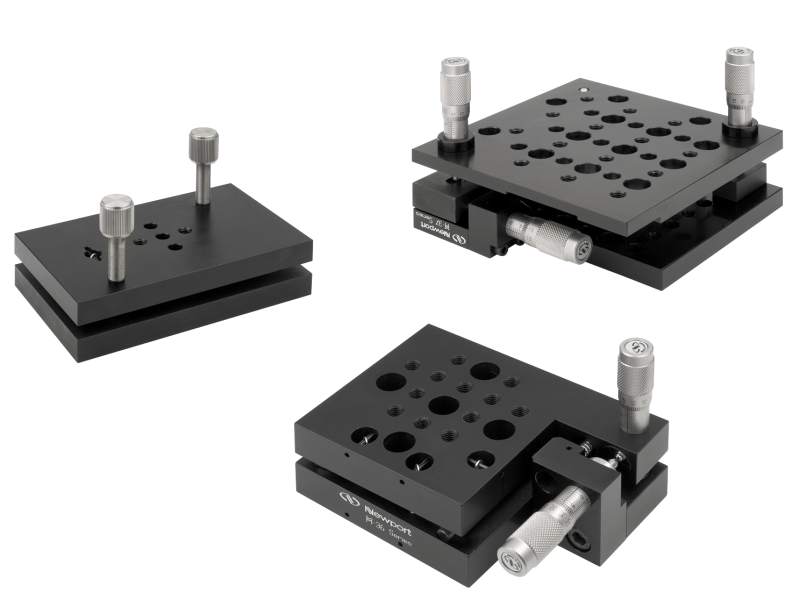

These multi-axis platforms provide tip, tilt and rotation adjustments for aligning optical components.
Model 36 has an elevation tilt adjustment and a rotation adjustment that rotates the mounting platform about the kinematic pivot point — ideal for use as a pointer.
Model 37 provides full, three-axis angular orientation freedom. When used with an XYZ stage, it provides six degrees of freedom for total positioning capability.
Model 39 provides two axes of angular adjustments, allowing a mounted component to be oriented parallel to an arbitrary plane.

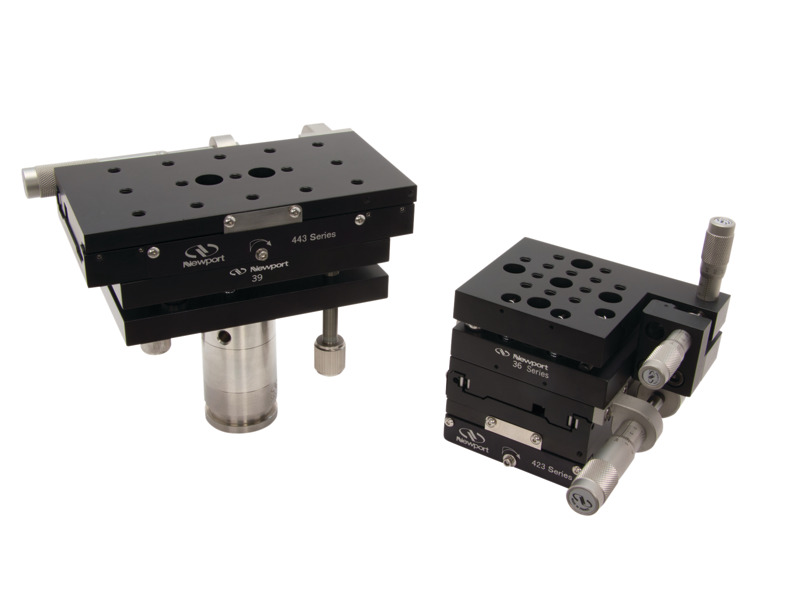

These tilt stages are ideally suited for mounting linear translations stages like the 423 and 443 to provide assemblies with full alignment capability. On the left, the 443 linear stage is mounted atop the Model 39 which provides tip/tilt adjustment. On the right, Model 36 is mount to an xy stack of 423 linear stages.
