New TE Series Optical Table Enclosures

Products
Features
Contact Us

Overview

TE80 Series Table Enclosures are engineered to reduce the impact of air currents on table optics, improving image clarity and stability. By isolating optical setups, these enclosures also enable longer exposure times, decrease laser power requirements, and enhance overall performance.

Easily installed on existing Newport optical tables
Improves results by reducing air currents
Raises S/N ratio for optical data processing applications
Can be custom built to your specification

See All Features

Products

Compare	Model	Compatibility	rankScore		Width	Length	Height	Availability	Featured Item	Brand
New TE80-36 Optical Table Enclosure, 3x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-36 Optical Table Enclosure, 3x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	1.0	3 ft.	6 ft.	32.5 in.	Show	New	Newport
New TE80-46 Optical Table Enclosure, 4x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-46 Optical Table Enclosure, 4x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	2.0	4 ft.	6 ft.	32.5 in.	Show	New	Newport
New TE80-56 Optical Table Enclosure, 5x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-56 Optical Table Enclosure, 5x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	3.0	59.06 in.	6 ft.	32.5 in.	Show	New	Newport
New TE80-38 Optical Table Enclosure, 3x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-38 Optical Table Enclosure, 3x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	4.0	3 ft.	8 ft.	32.5 in.	Show	New	Newport
New TE80-48 Optical Table Enclosure, 4x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-48 Optical Table Enclosure, 4x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	5.0	4 ft.	8 ft.	32.5 in.	Show	New	Newport
New TE80-58 Optical Table Enclosure, 5x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-58 Optical Table Enclosure, 5x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	6.0	59.06 in.	8 ft.	32.5 in.	Show	New	Newport
New TE80-310 Optical Table Enclosure, 3x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-310 Optical Table Enclosure, 3x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	7.0	3 ft.	10 ft.	32.5 in.	Show	New	Newport
New TE80-410 Optical Table Enclosure, 4x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-410 Optical Table Enclosure, 4x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	8.0	4 ft.	10 ft.	32.5 in.	Show	New	Newport
New TE80-510 Optical Table Enclosure, 5x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels Show	New TE80-510 Optical Table Enclosure, 5x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	1.0	9.0	59.06 in.	10 ft.	32.5 in.	Show	New	Newport
New M-TE80-36 Optical Table Enclosure, 900x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-36 Optical Table Enclosure, 900x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	10.0	900 mm	1800 mm	826 mm	Show	New	Newport
New M-TE80-46 Optical Table Enclosure, 1200x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-46 Optical Table Enclosure, 1200x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	11.0	1200 mm	1800 mm	826 mm	Show	New	Newport
New M-TE80-56 Optical Table Enclosure, 1500x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-56 Optical Table Enclosure, 1500x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	12.0	1500 mm	1800 mm	826 mm	Show	New	Newport
New M-TE80-38 Optical Table Enclosure, 900x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-38 Optical Table Enclosure, 900x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	13.0	900 mm	2400 mm	826 mm	Show	New	Newport
New M-TE80-48 Optical Table Enclosure, 1200x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-48 Optical Table Enclosure, 1200x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	14.0	1200 mm	2400 mm	826 mm	Show	New	Newport
New M-TE80-58 Optical Table Enclosure, 1500x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-58 Optical Table Enclosure, 1500x2400 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	15.0	1500 mm	2400 mm	826 mm	Show	New	Newport
New M-TE80-310 Optical Table Enclosure, 900x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-310 Optical Table Enclosure, 900x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	16.0	900 mm	3000 mm	826 mm	Show	New	Newport
New M-TE80-410 Optical Table Enclosure, 1200x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-410 Optical Table Enclosure, 1200x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	17.0	1200 mm	3000 mm	826 mm	Show	New	Newport
New M-TE80-510 Optical Table Enclosure, 1500x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels Show	New M-TE80-510 Optical Table Enclosure, 1500x3000 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	1.0	18.0	1500 mm	3000 mm	826 mm	Show	New	Newport

Show All

Features

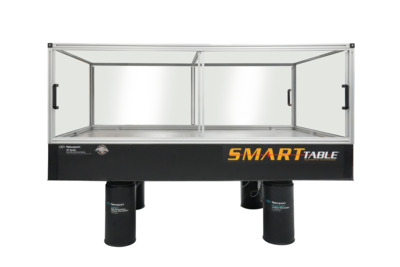

Table Mounted TE80 Enclosure

TE80 Series Table Enclosures come fully preassembled and feature a frame system made from 80/20 extrusion rails. They effectively minimize air currents from reaching the table optics, enhancing reconstruction brightness, allowing for longer exposures, and reducing the need for higher laser power. Each standard enclosure includes clear 1/4 in. (6.35 mm) acrylic sliding panels on both long sides and fixed panels on the short ends. The plastic handles equipped on both ends make it easy to slide the panels left or right from either side.

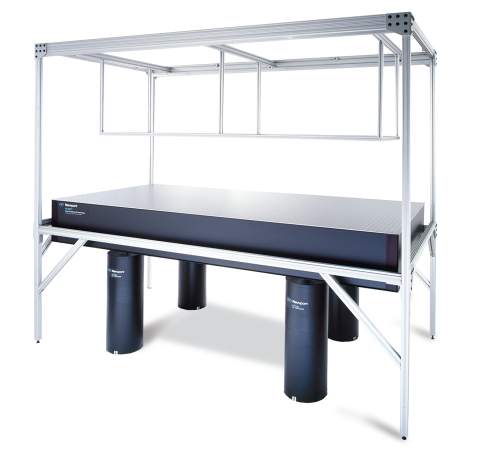

TE80 Series Custom Enclosures

TE80 Table Enclosures offer a range of customization options. Contact us to discuss how we can tailor features to your needs, including:

Free-standing legs
Panel color and material
Clear or black anodized frame
Electrical outlets
Storage shelves
Side access holes
Open ceiling for instruments
Lighting accessories
HEPA filter integration

TE80 Series table enclosure. * Table and legs sold separately.
