Compare Model Drawings, CAD & Specs Availability Price
7Z08363N
819M-B-0.50-1.0V2 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres
$162
7Z08363N 819M-B-0.50-1.0V2 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres $162
819M-B-0.06-0.5
Port Aperture Reducer, 0.5 in. Port, 0.0625 in. Aperture, Flat Black, 819C and 819D Spheres
$159
819M-B-0.06-0.5 Port Aperture Reducer, 0.5 in. Port, 0.0625 in. Aperture, Flat Black, 819C and 819D Spheres $159
819M-B-0.12-0.5
Port Aperture Reducer, 0.5 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres
$167
819M-B-0.12-0.5 Port Aperture Reducer, 0.5 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres $167
819M-B-0.25-0.5
Port Aperture Reducer, 0.5 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres
$161
819M-B-0.25-0.5 Port Aperture Reducer, 0.5 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres $161
819M-B-0.12-1.0
Port Aperture Reducer, 1.0 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres
$164
819M-B-0.12-1.0 Port Aperture Reducer, 1.0 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres $164
819M-B-0.25-1.0
Port Aperture Reducer, 1.0 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres
$167
819M-B-0.25-1.0 Port Aperture Reducer, 1.0 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres $167

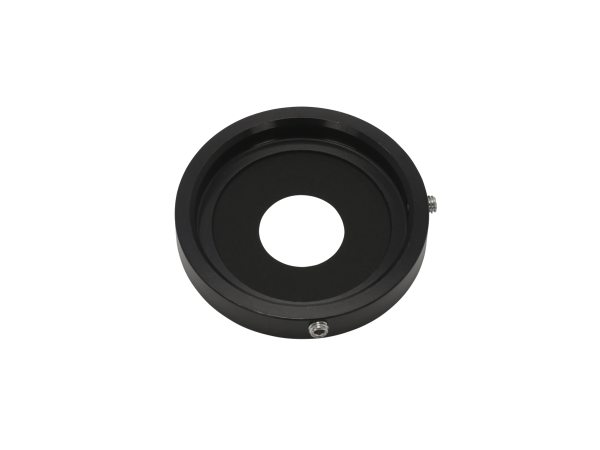

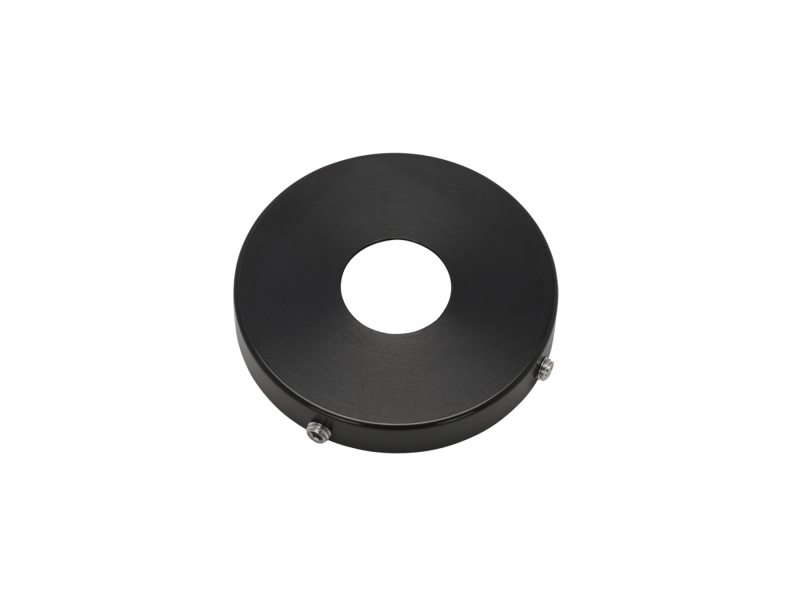

819M-B-0.50-1.0
Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres
$167
819M-B-0.50-1.0 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres $167
819M-B-0.75-1.0
Port Aperture Reducer, 1.0 in. Port, 0.75 in. Aperture, Flat Black, 819C and 819D Spheres
$167
819M-B-0.75-1.0 Port Aperture Reducer, 1.0 in. Port, 0.75 in. Aperture, Flat Black, 819C and 819D Spheres $167
819M-G-0.50-1.0
Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Diffused Gold, 819C and 819D Spheres
$418
819M-G-0.50-1.0 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Diffused Gold, 819C and 819D Spheres $418

Specifications

  • Type
    Port Aperture Reducer
  • Use
    819C and 819D Series Integrating Spheres

Features

Flat Black Coating

These port aperture reducers are available in Flat Black type coating. Flat Black type highly absorbs light and is used to imitate an open port, which does not have any reflection, and reduces introduction of ambient light into the sphere.

Customize Your Integrating Sphere

Complete your integrating sphere set-up with a wide variety of accessories. Our accessories include port plugs, port reducers, port frame reducers, fiber optic adapters, detector adapters, C-mount of SM1 type thread adapters, mounting assemblies, and a 0.5 inch to 1.0 inch port expander.
