Overview

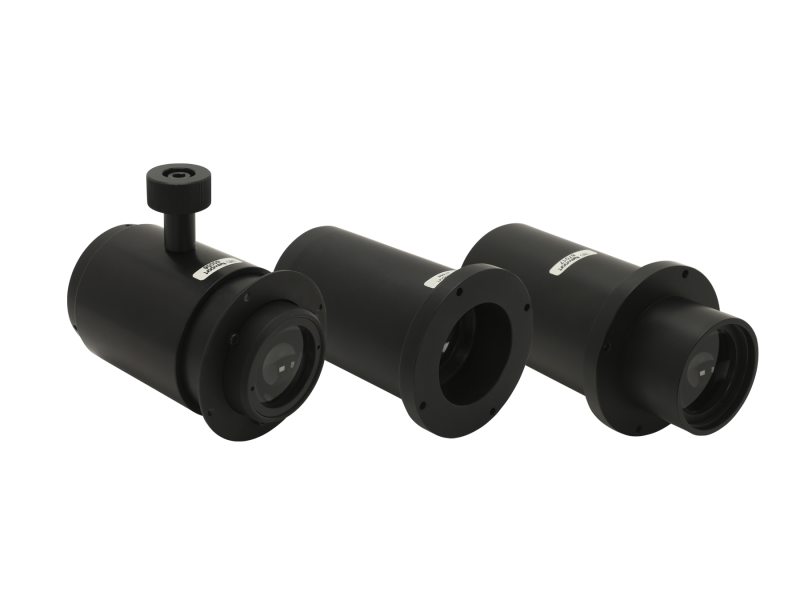

Q series condensing lens assemblies are compatible with the model 60000 Q series lamp housing. Up to four condensers may be installed, which can provide simultaneous illumination of multiple samples. The lens assemblies can be used to create a unique light source configuration or reconfiguring an existing light source system.

Condenser Lenses for Q Series lamp housings
Up to 4 can be installed for simultaneous illumination
Asphere or plano-convex lenses
1.5 Inch flange for beam routing

Products

Showing 4 of 4 total products

Compatibility:

Show entries

Search:

Compare	Model		Condenser Type	F/#	Lens Material	Lens Transmittance Range	Lens Multiplication Factor	Availability	Price	Brand
60008 Condensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere $560.00 Show	60008 Condensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere	1.0	Asphere	F/0.85	Borofloat® 33	350 - 2500 nm	0.13	Show	$560.00	Oriel Instruments
67017 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere $1,080.00 Show	67017 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere	2.0	Asphere	F/1	UV Fused Silica	200 - 2500 nm		Show	$1,080.00	Oriel Instruments
60076 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex $720.00 Show	60076 Condensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex	3.0	Plano-Convex	F/1	UV Fused Silica	200 - 2500 nm	0.11	Show	$720.00	Oriel Instruments
60006 Condensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex $410.00 Show	60006 Condensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex	4.0	Plano-Convex	F/1.5	UV Fused Silica	200 - 2500 nm	0.06	Show	$410.00	Oriel Instruments
