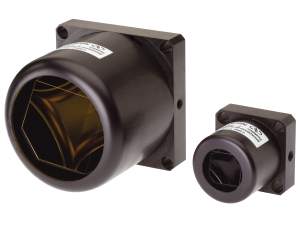

Our replicated hollow metal retro reflectors are fabricated from a single solid piece of aluminum, resulting in return beam accuracy unaffected by vibration. Mirrors are front surface coated with gold for maximum IR reflectivity.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
50326-0505 | $377.00 |
|
||||
|
|
50326-0510 | $297.00 |
|
||||
|
50326-0802 | $531.00 |
|
||||
|
|
50326-0805 | $446.00 |
|
||||
|
|
50326-0810 | $359.00 |
|
||||
|
50326-1002 | $595.00 |
|
||||
|
|
50326-1005 | $500.00 |
|
||||
|
|
50326-1010 | $410.00 |
|
||||
|
50326-1502 | $635.00 |
|
||||
|
|
50326-1505 | $551.00 |
|
||||
|
|
50326-1510 | $494.00 |
|
||||
|
50394-2505 | $515.00 |
|
||||
|
|
50394-2510 | $442.00 |
|
||||
|
|
50394-2520 | $359.00 |
|
||||
|
|
50394-2530 | $308.00 |
|

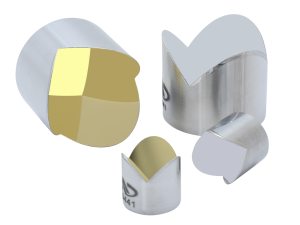

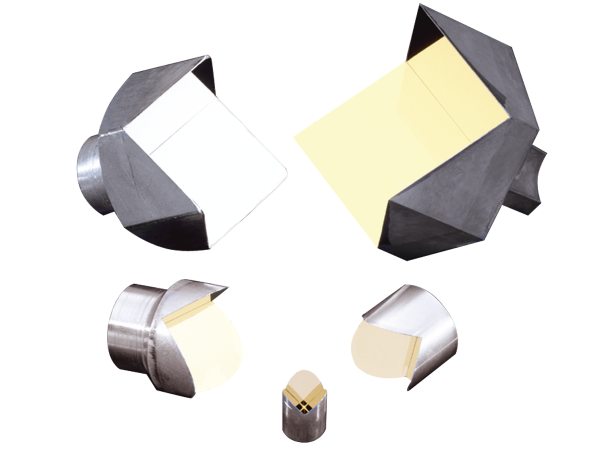

Our replicated hollow metal retroreflectors are monolithic, fabricated from a single piece of aluminum, resulting in return beam accuracy unaffected by vibration. Vibration sensitivity is reduced further by employing an integrated mount in the design.

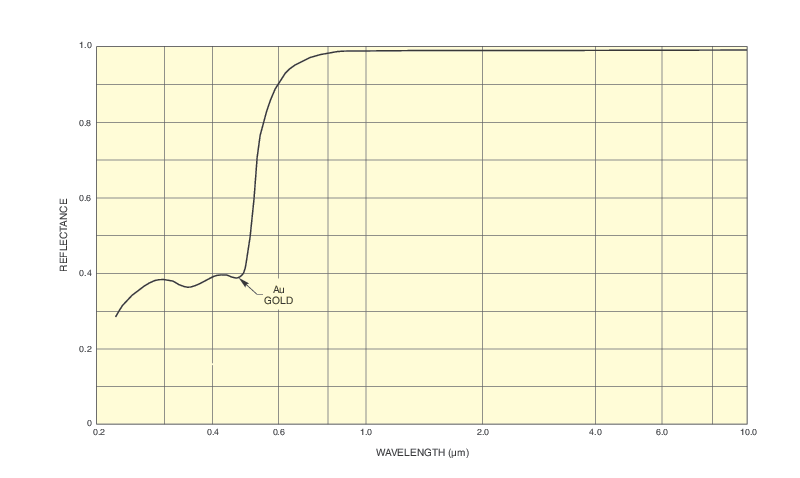

Front surface coated with gold for high reflectivity in the IR and deep IR.
Unlike solid glass retroreflectors, the optical path is entirely in air so efficient performance is obtained without antireflection coatings which limit the operating wavelength range. Using a novel patented fabrication technique, return beam accuracy as low as 2 arc sec. is economically achieved. These retroreflectors are offered in 12.7, 19.1, 25.4, 38.1, or 63.5 mm diameter and 30, 10, 5, or 2 arc sec return beam accuracy.
Retroreflectors, also known as corner cubes as all three mirror surfaces are perpendicular, will reflect all incoming light 180° regardless of incidence angle. This enables 180 degrees reflection of a beam without requiring prior alignment (as with a flat mirror). Images reflected by a corner cube are reversed and inverted.
