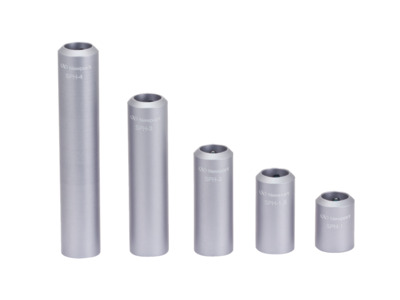

Slim Optical Post Holders feature a streamline design taking up 25% less space than standard optical post holders with a knob-less hex key post clamp which does not increase the holder's diameter. SPH post holders are available in five standard heights and are sold individually or in a cost-saving pack of 10 each.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
SPH-1 Optical Post Holder, Slim, 1.0 in. Height, 0.5 in. Posts, 1/4-20 CLR | $6.20 |
|
||||
|
SPH-1.5 Optical Post Holder, Slim, 0.5 in. Height, 0.5 in. Posts, 1/4-20 CLR | $7.20 |
|
||||
|
SPH-2 Optical Post Holder, Slim, 2.0 in. Height, 0.5 in. Posts, 1/4-20 CLR | $7.20 |
|
||||
|
SPH-3 Optical Post Holder, Slim, 3.0 in. Height, 0.5 in. Posts, 1/4-20 CLR | $8.40 |
|
||||
|
SPH-4 Optical Post Holder, Slim, 4.0 in. Height, 0.5 in. Posts, 1/4-20 CLR | $8.40 |
|
||||
|
SPH-1-PK Optical Post Holder 10 Pack, Slim, 1 in. Height, 0.5 in. Posts, 1/4-20 CLR | $56 |
|
||||
|
SPH-1.5-PK Optical Post Holder 10 Pack, Slim, 0.5 in. Height, 0.5 in. Posts, 1/4-20 CLR | $65 |
|
||||
|
SPH-2-PK Optical Post Holder 10 Pack, Slim, 2 in. Height, 0.5 in. Posts, 1/4-20 CLR | $65 |
|
||||
|
SPH-3-PK Optical Post Holder 10 Pack, Slim, 3 in. Height, 0.5 in. Posts, 1/4-20 CLR | $76 |
|
||||
|
SPH-4-PK Optical Post Holder 10 Pack, Slim, 4 in. Height, 0.5 in. Posts, 1/4-20 CLR | $76 |
|
SPH Series, Slim Optical Post Holders feature a smooth, narrow design of their aluminum construction, with an outer diameter of 0.75 in. (19 mm). This profile requires up to 25% less space than standard optical post holders. The space saving benefits are supported by a knob-less, hex key post clamp in a set-screw design inset within the holder.

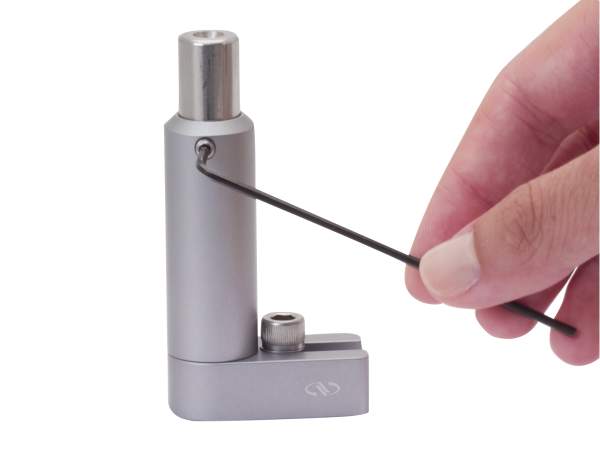

A knob-less hex key post clamp that does not protrude beyond the outer diameter of the post holder and also serves as a deterrent against unwanted tampering. It uses a 5/64-in. (2 mm) hex key.

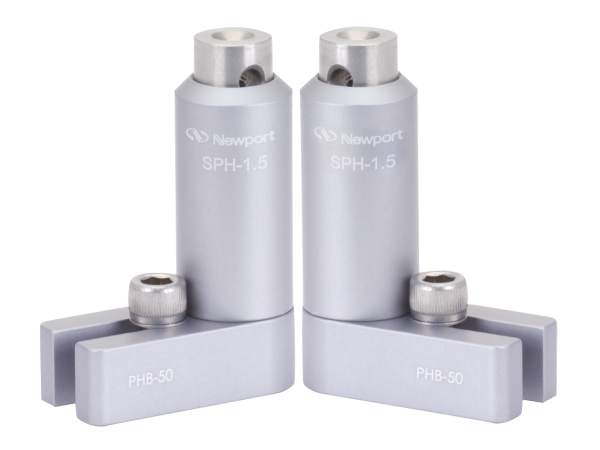

SPH Post Holders have a 1/4-20 (M6) thru hole in the base and can be attached to optical table directly or to a PHB Series open-slotted base with threaded 1/4-20 (M6) hole. These threaded bases are available in two different thicknesses to provide versatile positioning of the SPH post holders on an optical table or breadboard.
