To operate any monochromator or spectrograph, slits are required at all entrance and exit ports. The slits offered for use with Oriel® monochromators and spectrographs all have 1.5-inch male flanges, allowing them to be easily connected to the wide variety of Oriel accessories and instruments. The resolution of the monochromator is related to the grating dispersion and the slit width, and is calculated to be the reciprocal dispersion multiplied by the slit width.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
74001 Micrometer Driven Slit Assembly, Monochromators and Spectrographs | $820.00 |
|
||||
|

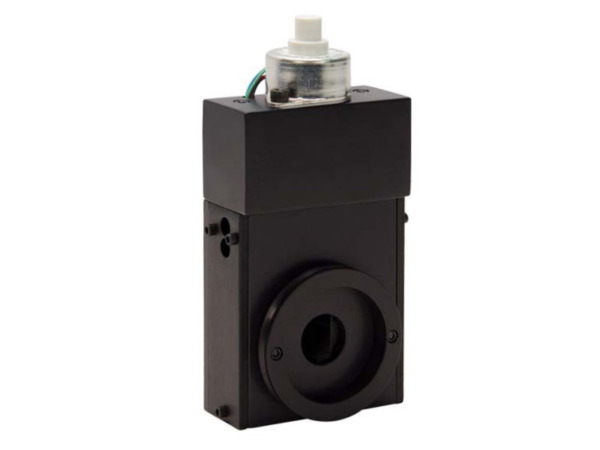

74115B Motorized Driven Slit Assembly, CS260B Monochromators |
|
|||||
|
77294 Fixed Slit Holder, Monochromators and Spectrographs | $245.00 |
|
||||
|
77721 Fixed Slit Holder, MS257 | $440.00 |
|
||||
|
77211 Fixed Slit, 6.32 mm Width, 18 mm Height | $195.00 |
|
||||
|
77212 Fixed Slit, 3.16 mm Width, 18 mm Height | $195.00 |
|
||||
|
77213 Fixed Slit, 1.56 mm Width, 18 mm Height | $185.00 |
|
||||
|
77214 Fixed Slit, 1240 µm Width, 18 mm Height | $195.00 |
|
||||
|
77215 Fixed Slit, 760 µm Width, 18 mm Height | $185.00 |
|
||||
|
77216 Fixed Slit, 600 µm Width, 18 mm Height | $200.00 |
|
||||
|
77217 Fixed Slit, 280 µm Width, 18 mm Height | $200.00 |
|
||||
|
77218 Fixed Slit, 120 µm Width, 18 mm Height | $195.00 |
|
||||
|
77219 Fixed Slit, 50 µm Width, 6 mm Height | $335.00 |
|
||||
|
77220 Fixed Slit, 25 µm Width, 3 mm Height | $465.00 |
|
||||
|
77221 Fixed Slit, 50 µm Width, 3 mm Height | $350.00 |
|
||||
|
77222 Fixed Slit, 10 µm Width, 2 mm Height | $455.00 |
|
||||
|
77725 Fixed Slit, 25 μm Width, 6 mm Height | $455.00 |
|
||||
|
77728 Fixed Slit, 100 μm Width, 3 mm Height | $195.00 |
|
||||
|
77729 Fixed Slit, 100 µm Width, 10 mm Height | $195.00 |
|
||||
|
77730 Fixed Slit, 200 μm Width, 3 mm Height | $195.00 |
|
||||
|
77731 Fixed Slit, 200 µm Width, 10 mm Height | $195.00 |
|
||||
|
77732 Fixed Slit, 500 μm Width, 15 mm Height | $195.00 |
|
||||
|
77733 Fixed Slit, 1000 µm Width, 15 mm Height | $195.00 |
|
||||
|
77734 Fixed Slit, 2000 µm Width, 20 mm Height | $325.00 |
|
||||
|
77735 Fixed Slit, 5000 µm Width, 20 mm Height | $195.00 |
|
||||
|
77736 Fixed Slit, 5000 µm Width, 15 mm Height | $195.00 |
|

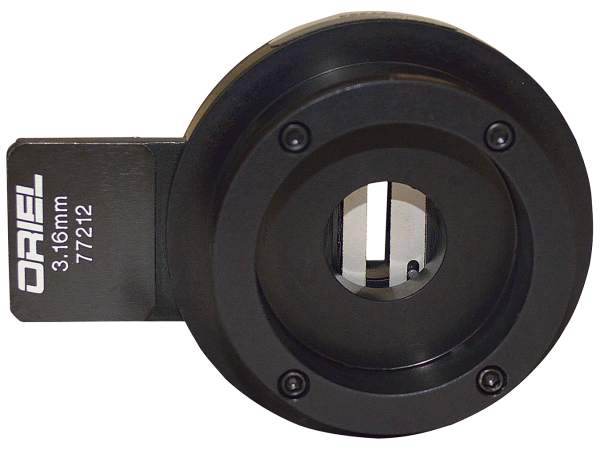

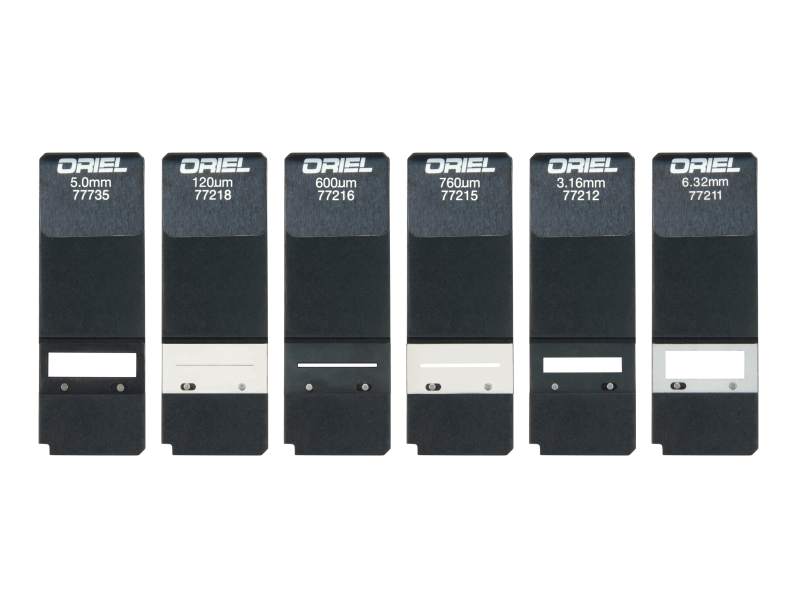

Fixed slits are a low cost alternative with excellent repeatability and are a good choice when only a few slit sizes are required. Avaialble in widths from 10 µm to 6.3 mm, they slide into the holders at all instrument ports, with the exception of those ports configured to mount a camera. The slit holders are installed by Newport during calibration of the instrument. The width and height cannot be adjusted but may be individually replaced with other slit sizes. These fixed slits are sold separately to allow customized choices based on the needs of the application. When ordering, be sure to purchase fixed slits of the same model (i.e. same size) for the input port and output port(s). Each of the fixed slits is mounted in a precision machined slide which is inserted into the 77294 or 77721 fixed slit holder. Contact us for more information.

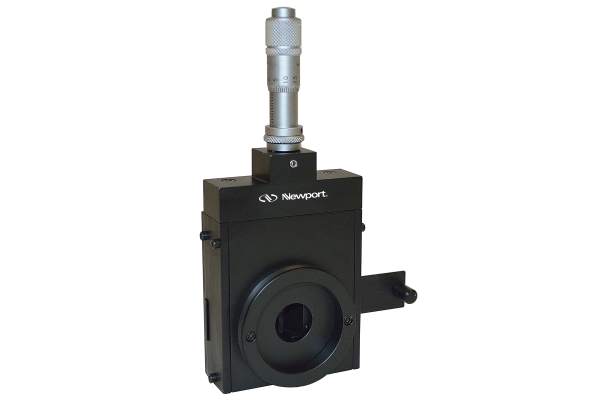

A micrometer adjustable slit assembly provides versatility and convenience in changing resolution and throughput. They are ideal when the utmost accuracy and repeatability is required, especially at high resolution. These adjustable slits are continuously variable from fully closed to 3 mm width, with a narrowest practically achievable width of 4 µm. (Note that optimum spectral resolution for any monochromator is obtained with short, narrow slits.) A height adjustment slide allows variation in the height from 2 to 12 mm.
Exclusive to the CS260B monochromators, the
