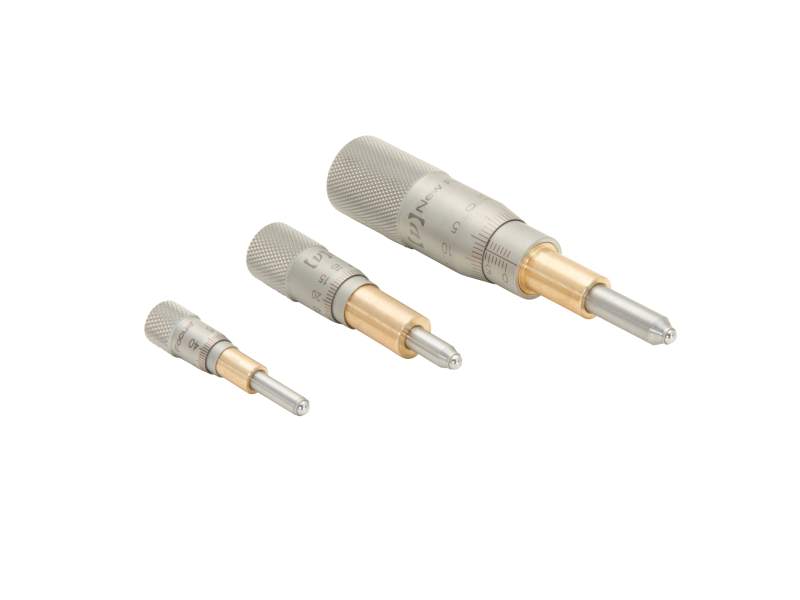

These high-quality micrometers feature a smooth-bore, unthreaded mounting shank with industry standard dimensions for use with slip-in, clamp style mounts like those found on New Focus stages.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9351 Micrometer, 0.25 in. Travel, Unthreaded, 100 TPI High-Resolution |
|
$147.00 |
|
|||
|
9354 Micrometer, 0.25 in. Travel, Unthreaded, For 9061 Series Stages |
|
$133.00 |
|
|||
|
9355 Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages |
|
$133.00 |
|
|||
|
9356 Micrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages |
|
$122.00 |
|
|||
|
SM-06 Micrometer, 6 mm Travel, Unthreaded, Vernier |
|
$131.00 |
|

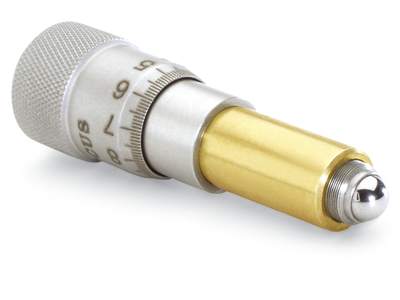

The 9351 high-resolution 100-TPI micrometer screw features a smooth-bore unthreaded mounting shank and is intended for incorporation in OEM application. The micrometer mounting shank is designed for bonding into 0.345 +/-0.001 inch (8.8 +/-0.03 mm) diameter holes.

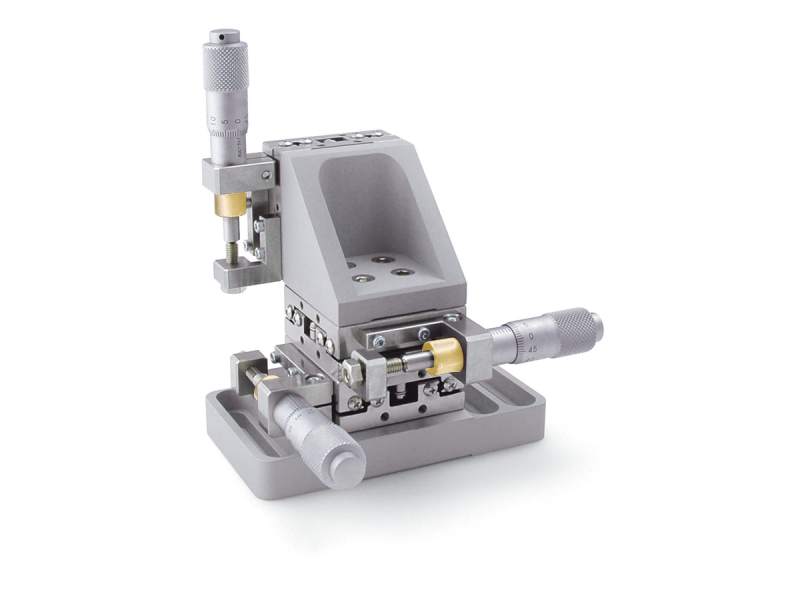

The 9354 offers 0.25 inch travel and is ideal for New Focus 9061 series linear stages. The 9355 offers 0.5 inch travel and is ideal for New Focus 9062 series linear stages. The 9356 offers 1.0 inch travel and is ideal for New Focus 9063 series linear stages.
