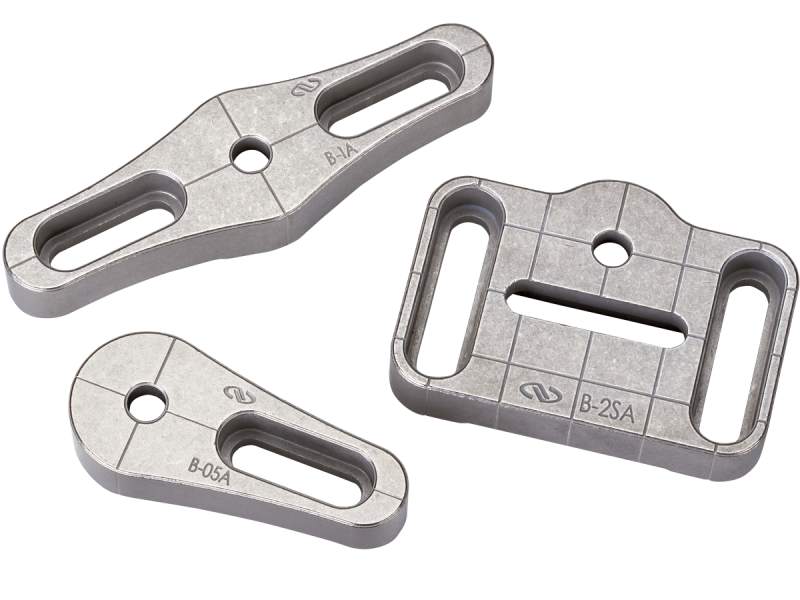

Slotted base plates enable easy and accurate XY horizontal positioning adjustment of post-mounted optical components. Compatible with 0.5 in. (12.7 mm) diameter optical post holders, these stainless steel plates offer increased stiffness and thermal stability over conventional materials. A unique 0.5 in. (12.7 mm) index grid pattern assists alignment, while thumb screw or bolt mounting through slots allow for one or two axis translation and rigid lock down. Also included are counterbored clearance holes for mounting post holders, rails, and a variety of other components.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
B-05A Slotted Base, 0.68 in. Range Single Slot, Stainless Steel |
|
$10.40 |
|
|||
|
B-05A-PK Slotted Base Pack, 0.68 in. Range Single Slot, Stainless Steel, Qty 10 |
|
$95.00 |
|
|||
|
B-1A Double Slotted Base, 0.68 in. Range, Stainless Steel |
|
$11.10 |
|
|||
|
|
B-1A-PK Double Slotted Base Pack , 0.68 in. Range, Stainless Steel, Qty 10 |
|
$102.00 |
|
|||
|

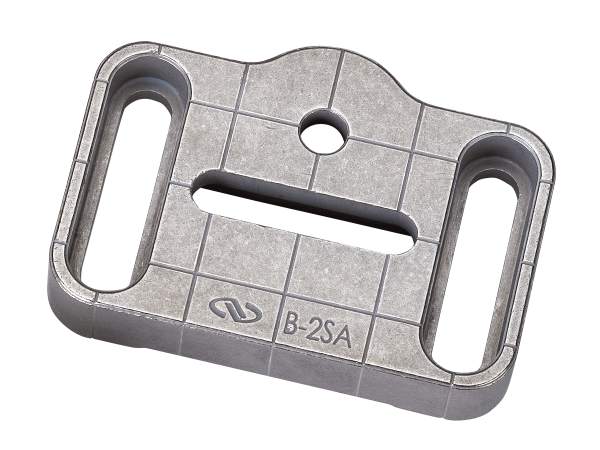

B-2SA Double-Slotted Base, Stainless Steel, XY, 1.0 in. Range |
|
$14.00 |
|
|||
|
B-2SA-PK XY Double-Slotted Base Pack, Stainless Steel, 1.0 in. Range, Qty 10 |
|
$128.00 |
|
These slotted bases provide slot-guided linear positioning for post mounted optical mounts making them ideal for basic alignment.

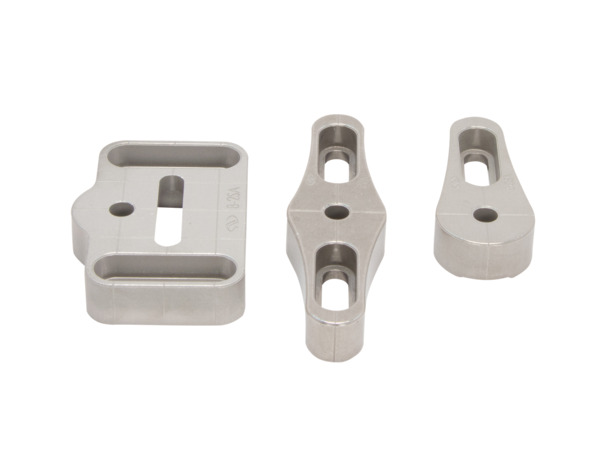

Each of the three models incorporates a unique 0.5 in. (12.7 mm) index grid pattern to assist in more accurate alignment.
Stainless steel offer increased stiffness and higher thermal stability over aluminum bases. Since most optical tables are made from stainless steel, the coefficients of thermal expansion also match up.
