Top Adjust Gimbal Mirror Mounts

Compare	Model	Compatibility	rankScore		Optic Diameter	Drive Type	Adjustment Screw Thread	Sensitivity	Availability	Price	Brand
VGM-1N Gimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators $748.00 Show	VGM-1N Gimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators	UNIVERSAL	1.0	1.0	25.4 mm	Not Included			Show	$748.00	Newport
VGM-1AJS Gimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws $806.00 Show	VGM-1AJS Gimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws	UNIVERSAL	1.0	2.0	25.4 mm	Knob, locking	100 TPI	4.9 arc sec	Show	$806.00	Newport
VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers $1,333.00 Show	VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers	UNIVERSAL	1.0	3.0	25.4 mm	Micrometer	51 TPI	9.7 arc sec	Show	$1,333.00	Newport
VGM-2N Gimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators $909.00 Show	VGM-2N Gimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators	UNIVERSAL	1.0	4.0	50.8 mm	Not Included			Show	$909.00	Newport
VGM-2AJS Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws $964.00 Show	VGM-2AJS Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws	UNIVERSAL	1.0	5.0	50.8 mm	Knob, locking	100 TPI	3.3 arc sec	Show	$964.00	Newport
VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers $1,485.00 Show	VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers	UNIVERSAL	1.0	6.0	50.8 mm	Micrometer	51 TPI	6.5 arc sec	Show	$1,485.00	Newport

Show All

Features

Keep Your Hands Out of Harms Way

Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.

Your Choice of Actuator - Or Not

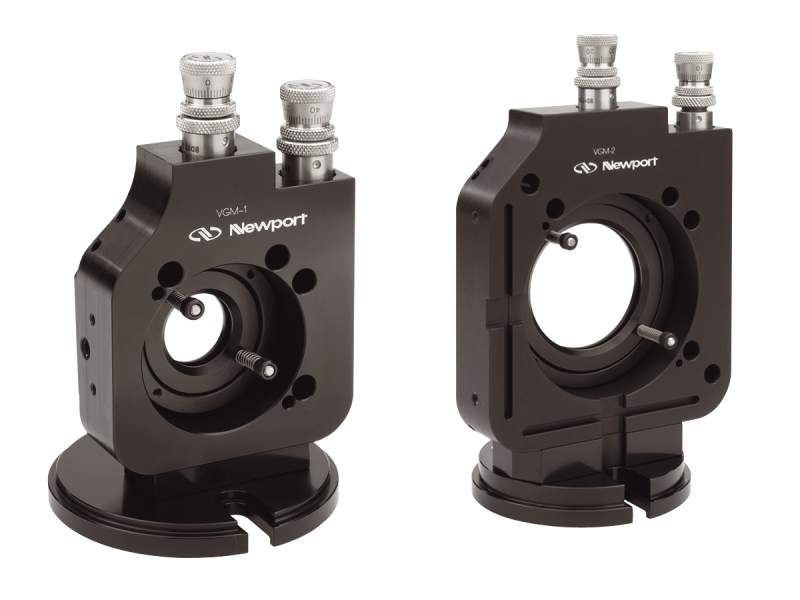

VGM series Top-Adjust Gimbal Mounts are offered in three choices. For applications requiring a user-supplied actuator, VGM mounts can be ordered without actuators.

Model	Included Actuators
-AJS	AJS100-0.5
-BM	BM17.04N
-N	N/A

Top Adjust Gimbal Mirror Mounts

Top Adjust Gimbal Mirror Mounts

Overview

Products

Specifications

Features

Keep Your Hands Out of Harms Way

Your Choice of Actuator - Or Not

Accessories

Micrometer Actuators

Optic Adaptors

Precision Spacers

Other Top-Adjust Mounts

Resources

Technical Notes

Description	Compatibility	Avail.	Price
BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load	UNIVERSAL	Show	$316.00
BHC17.04 Adjustment Screw, Hex, M12 x 0.50, 4mm Travel, BHC Series	UNIVERSAL	Show	$176.00
BD17.04 Differential Micrometer Head, 4.3 mm Coarse, 0.3 mm Fine, 11 lb. Load	UNIVERSAL	Show	$413.00
DM17-4 Differential Micrometer Head, 4.1 mm Coarse, 0.1 mm Fine, 11 lb. Load	UNIVERSAL	Show	$577.00
AJS170-0.5K-NL Adjustment Screw, 170 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	Show	$73.00
AJS254-0.5K-NL Adjustment Screw, 254 TPI, 12.7 mm, 280 nm Sensitivity, Large Knob	UNIVERSAL	Show	$90.00

Description	Compatibility	Avail.	Price
UPA-SMA Fiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick	UNIVERSAL	Show	$42.00
UPA-FC Fiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts	UNIVERSAL	Show	$26.00
UPA2-OAP Mounting Adapter, Off-Axis Parabolic Mirror, for 2 in. Mounts	UNIVERSAL	Show	$53.00
LH-2R1 Lens Adaptor, 2.0 in. Mount to 1.0 in. Diameter Lens, A-LINE	UNIVERSAL	Show	$30.00
LH-2R1.5 Lens Adaptor, 2.0 in. Mount to 1.5 in. Diameter Lens, A-LINE	UNIVERSAL	Show	$30.00

Description	Compatibility	Avail.	Price
SR-0.125-S Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Show	$15.10
SR-0.063-S Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Show	$14.00
SR-0.25-S Pedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	Show	$16.90
PS-0.125-T Pedestal Spacer, 0.125 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Show	$10.10
PS-0.063-T Pedestal Spacer, 0.0625 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Show	$8.80
PS-0.031-T Pedestal Spacer, 0.0313 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Show	$8.80
PS-0.25-T Pedestal Spacer, 0.25 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Show	$10.10
