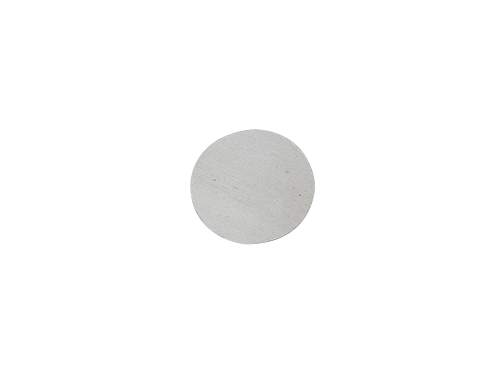

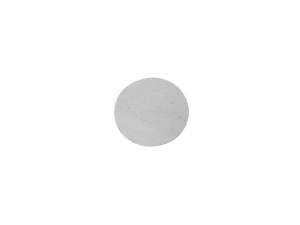

Our unmounted high-energy pinholes are fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth hole with extremely low ellipticity is produced using laser drilling techniques.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
PH-1.0 High-Energy Pinhole, Molybdenum, 1 µm, Unmounted |
|
$158.00 |
|
|||
|
|
PH-5 High-Energy Pinhole, Molybdenum, 5 µm, Unmounted |
|
$113.00 |
|
|||
|
|
PH-10 High-Energy Pinhole, Molybdenum, 10 µm, Unmounted |
|
$107.00 |
|
|||
|
|
PH-15 High-Energy Pinhole, Molybdenum, 15 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-20 High-Energy Pinhole, Molybdenum, 20 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-25 High-Energy Pinhole, Molybdenum, 25 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-30 High-Energy Pinhole, Molybdenum, 30 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-40 High-Energy Pinhole, Molybdenum, 40 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-50 High-Energy Pinhole, Molybdenum, 50 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-75 High-Energy Pinhole, Molybdenum, 75 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-100 High-Energy Pinhole, Molybdenum, 100 µm, Unmounted |
|
$90.00 |
|
|||
|
|
PH-SET High-Energy Pinhole Set, Molybdenum, Unmounted | $484.00 |
|
Molybdenum is a refractory alloy with high heat conductivity and high melting point that exhibits almost no warping due to localized heating by the laser. These ultra-thin molybdenum pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2.
These high energy unmounted Molybdenum pinholes are compatible with our 910P-MNT pinhole mount. The
These high energy unmounted Molybdenum pinholes are compatible with our
