Compare Model Drawings, CAD & Specs Type Core Diameter Numerical Aperture Transmittance Range Fiber Length Availability Price
uv-vis large core fiber optic cable model 78253
78252
$230.00
78252 UV-VIS Large Core Fiber 200 µm 0.22 250 - 1150 nm 2 m $230.00
uv-vis large core fiber optic cable model 78253
78253
$215.00
78253 UV-VIS Large Core Fiber 400 µm 0.22 250 - 1150 nm 1 m $215.00
78254
$265.00
78254 UV-VIS Large Core Fiber 400 µm 0.22 250 - 1150 nm 2 m $265.00
uv-vis large core fiber optic cable model 78253
78256
$235.00
78256 VIS-NIR Large Core Fiber 200 µm 0.22 400 - 2200 nm 2 m $235.00
uv-vis large core fiber optic cable model 78253
78257
$295.00
78257 VIS-NIR Large Core Fiber 400 µm 0.22 400 - 2200 nm 1 m $295.00
uv-vis large core fiber optic cable model 78253
78258
$300.00
78258 UV-NIR Large Core Fiber 400 µm 0.22 400 - 2200 nm 2 m $300.00
78259
$295.00
78259 UV-NIR Large Core Fiber 600 µm 0.22 400 - 2200 nm 1 m $295.00
78260
$370.00
78260 UV-NIR Large Core Fiber 600 µm 0.22 400 - 2200 nm 2 m $370.00
78277
$360.00
78277 UV-VIS Large Core Fiber 1000 µm 0.22 250 - 1150 nm 1 m $360.00
78300
$355.00
78300 UV-NIR Large Core Fiber 800 µm 0.22 400 - 2200 nm 1 m $355.00
78301
$575.00
78301 UV-NIR Large Core Fiber 800 µm 0.22 400 - 2200 nm 2 m $575.00
78302
$440.00
78302 UV-NIR Large Core Fiber 1000 µm 0.22 400 - 2200 nm 1 m $440.00
78303
$745.00
78303 UV-NIR Large Core Fiber 1000 µm 0.22 400 - 2200 nm 2 m $745.00
78367
$225.00
78367 UV-VIS Large Core Fiber 600 µm 0.22 250 - 1150 nm 1 m $225.00
78368
$350.00
78368 UV-VIS Large Core Fiber 600 µm 0.22 250 - 1150 nm 2 m $350.00

Features

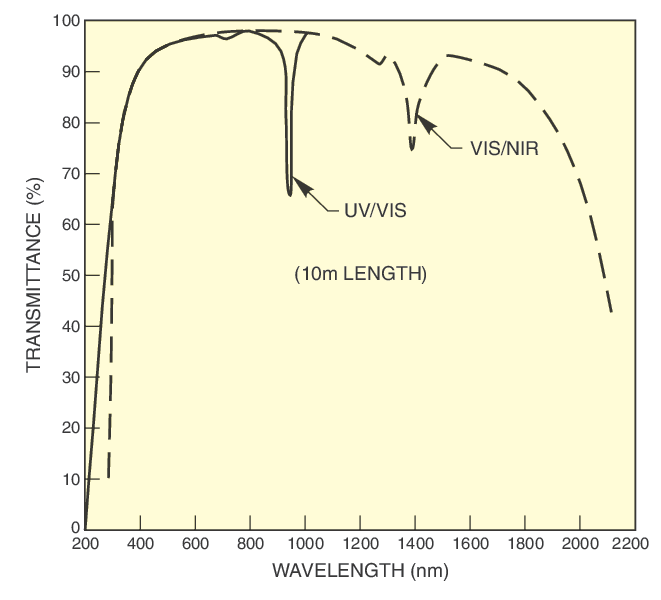

Two Different Transmittance Ranges Available

Two different materials are used in the core construction of these light guides to offer two different transmittance ranges. UV/VIS, or ultraviolet to visible fibers have a useable wavelength range of 250 to 1150 nm. VIS/NIR, or visible to near-infrared fibers are suitable for wavelength transmittance from 400 to 2100 nm.

High Damage Threshold

In addition to high transmittance, these fibers have a high damage threshold to input light. For a clean input surface the damage threshold is 100 kW cm-2 in the NIR or 10 J cm-2 for ≥1 ns pulses, for wavelengths above 360 nm.
