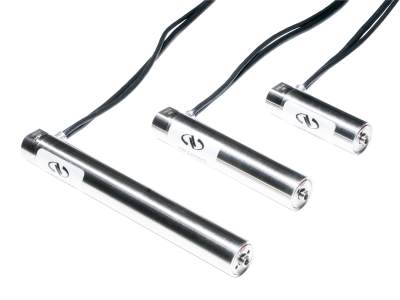

Our vacuum compatible piezo stack actuators are equipped with a highly reliable, multi-layer, low-voltage, piezoelectric transducer stack. They are internally pre-loaded by a mechanical spring and feature high resonant frequencies, making them ideal for high load, dynamic vacuum applications.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
NPA25V6 Piezo Stack Actuator, Vacuum, 0.025 mm Travel Range, Open-loop | $1,104.00 |
|
||||
|
|
NPA25SGV6 Piezo Stack Actuator, Vacuum, 0.025 mm Travel Range, Strain-gauge | $2,517.00 |
|
||||
|
NPA50V6 Piezo Stack Actuator, Vacuum, 0.05 mm Travel Range, Open Loop | $1,466.00 |
|
||||
|
|
NPA50SGV6 Piezo Stack Actuator, Vacuum, 0.05 mm Travel Range, Strain-gauge | $2,790.00 |
|
||||
|
NPA100V6 Piezo Stack Actuator, Vacuum, 0.1 mm Travel Range, Open Loop | $2,064.00 |
|
||||
|
|
NPA100SGV6 Piezo Actuator, Vacuum, 0.1 mm Travel Range, Strain-gauge | $3,714.00 |
|
With positioning resolution as low as 0.05 nm, the NPA Piezo Stack Actuators make ultra-fine adjustments with resolution only limited by the noise of the control electronics.
NPA Piezo Stack Actuators can generate large forces up to 1000 N which make them particularly useful for machine tools, active vibration isolation, or adaptive mechanics.
Closed-loop versions feature high resolution strain-gauge position sensors for highly accurate and repeatable motion which also compensates for actuator creep. The assembly is done as a full Wheatstone bridge and is temperature insensitive. The closed-loop devices can be used in either open or closed-loop control.
