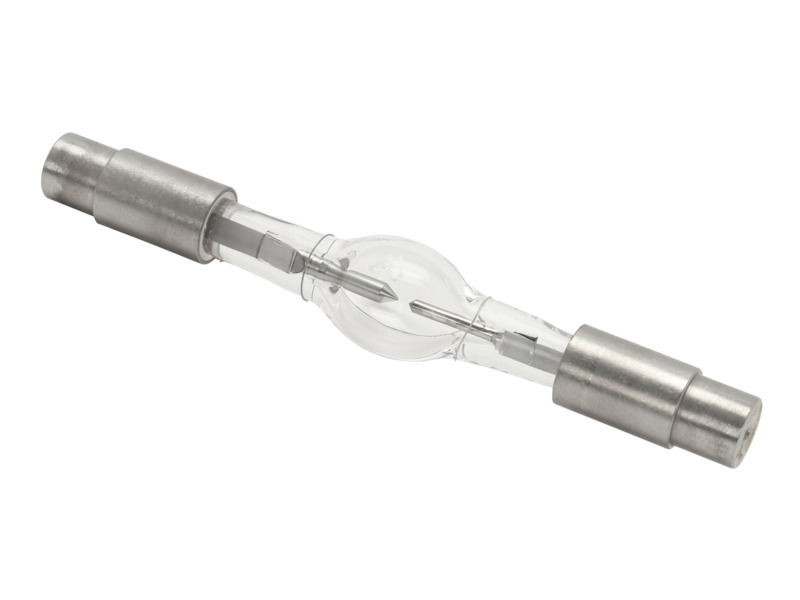

The 6256 Replacement Xenon Lamp is filled with purified xenon at 5-20 bar. The pressure triples during operation. This 150 watt Xenon lamp with a 0.5 x 1.5 mm effective arc size operates with the anode at the top. The small intense arcs radiate like 5500-6000 K full radiators with some xenon lines superimposed. The xenon lines dominate between 750 and 1000 nm, but the spectrum is almost featureless through the ultraviolet and visible. Xenon lamps are popular for demanding absorbance and fluorescence applications involving source spectral scanning, and as high intensity broadband sources. Because of its sun-like spectrum, the xenon lamp is used for solar simulation. This compact lamp with an 18 mm diameter bulb is compatible with the 66152 Socket Adapter (not included).
High stability Xe arc lamps are made of a higher quality cathode than typically used for xenon arc lamp construction. As a result, no arc wander occurs, allowing the lamp to maintain a consistent output intensity throughout its lifetime.
We recommend purchasing replacement xenon lamps only as needed. Xe arc lamps do have an unspecified shelf life, which over time can cause the end cap seals to leak and degrade lamp performance. Newport strives to keep Xe bulbs in stock to reduce lead times when ordering a replacement.
Check out our compatibility guide for compatible housing, socket adapter, power supply and cable to be used with each lamp.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
66152 Lamp Socket Adapter, 200 W Hg(Xe) Lamp, For Research Housing | UNIVERSAL | $265.00 |
|
||||
 |
69907 Arc Lamp Power Supply, Universal, 40 to 200 Watt | UNIVERSAL | $5,740.00 |
|
||||
 |
70050 Power Supply Cable, 6 ft., Xe, Hg(Xe), QTH, Deuterium Lamps, IR Emitters | UNIVERSAL | $165.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
49123 UV Protective Gloves, Size 8, Black Neoprene, Set of 3 | UNIVERSAL | $75.00 |
|
||||
| |
49121 Ultraviolet Protective Gloves, Size 10, Black Neoprene, Set of 3 | UNIVERSAL | $75.00 |
|
||||
 |
49126 Safety Goggles, UV Light Sources, Flexible Frame | UNIVERSAL | $80.00 |
|
||||
 |
66087 Ozone Eater™, 110/220 VAC, 50/60 Hz | UNIVERSAL | $1,950.00 |
|
