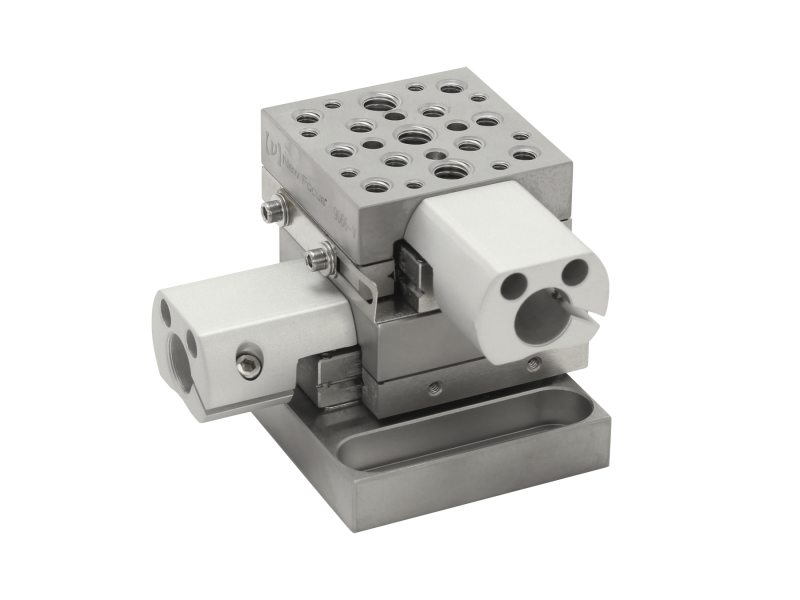

The 9066-XY-L-V Vacuum Compatible Left-Handed Configured Stainless Steel Crossed-Roller Bearing Linear Translation Stage is a 0.5 inch travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. These stages are clean assembled and utilize low vapor pressure grease appropriate for vacuum and clean environments. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8301-V vacuum compatible picomotor actuators for vacuum applications.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
9066-X-V Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum | IMPERIAL |
|
$817.00 |
|
|||
 |
9066-COM-V Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum, No Baseplate | IMPERIAL |
|
$714.00 |
|
|||
 |
9066-XYZ-L-V XYZ Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum, Left-Handed | IMPERIAL |
|
$2,255.00 |
|
|||
 |
9066-XZ-V XZ Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum | IMPERIAL |
|
$1,672.00 |
|
|||
 |
9067-XY-L-V XY Linear Stage, 1.0 in. Travel, 8-32 and 1/4-20, Vacuum, Left-Handed | IMPERIAL | $1,904.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
8301-V Picomotor Actuator, 0.5 in. Travel, 0.375 in. Shank, Vacuum Compatible, Teflon | UNIVERSAL |
|
$1,063.00 |
|
|||
 |
9042 Baseplate, 9066 Series Stages, 4-40 | IMPERIAL | $72.00 |
|
||||
 |
AJS100-0.5H-V6 Hex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock, Vacuum | UNIVERSAL |
|
$72.00 |
|
|||
 |
AJS170-0.5H-NL-V6 Hex Adjustment Screw, 170 TPI, 12.7 mm Travel, Vacuum | UNIVERSAL |
|
$103.00 |
|
|||
 |
9041 90 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20 | IMPERIAL |
|
$133.00 |
|
