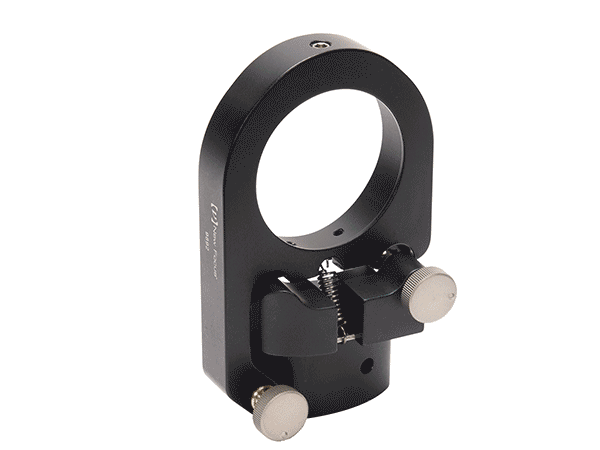

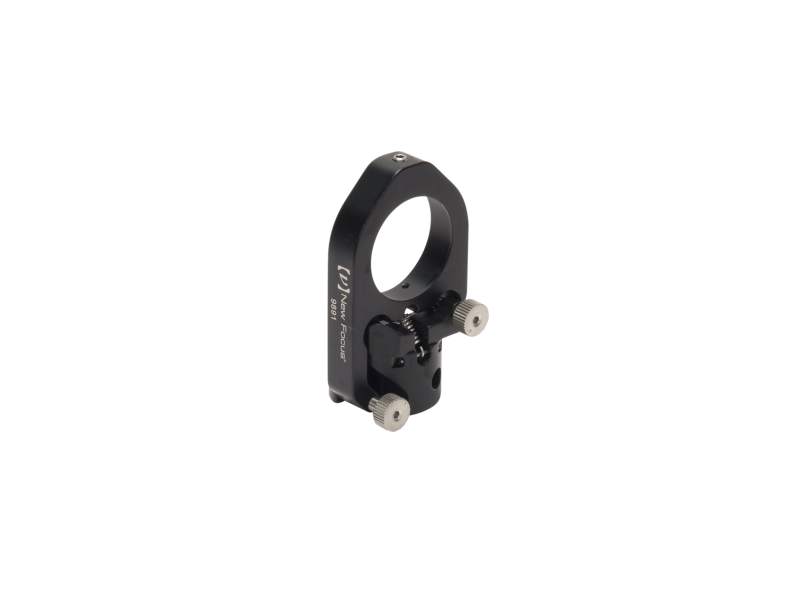

The 9891 Flipper Optic Mount adds a hinge to a traditional 1.0 inch optic mount. The result is a mount that lets you move an optic into and out of your beam path easily and repeatably. Ideal for turning mirrors in multiplexed laser experiments, this mount eliminates many of the headaches associated with sharing a laser. Adjustment screws let you steer your beam, while a sapphire pad under the screw gives you better than 200-μrad repeatability between flips.

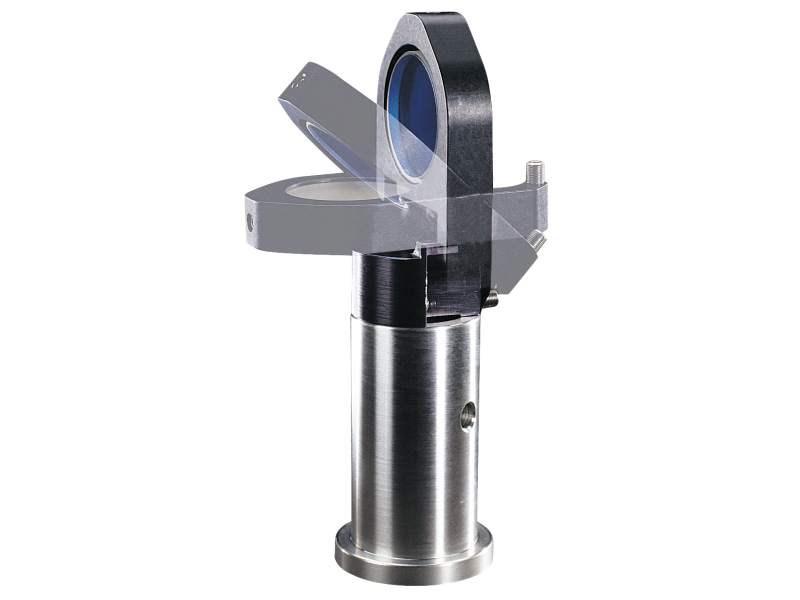

The flipper mount folds the mirror 90 degrees down and completely out of the beam path making it ideal for beam splitting applications.

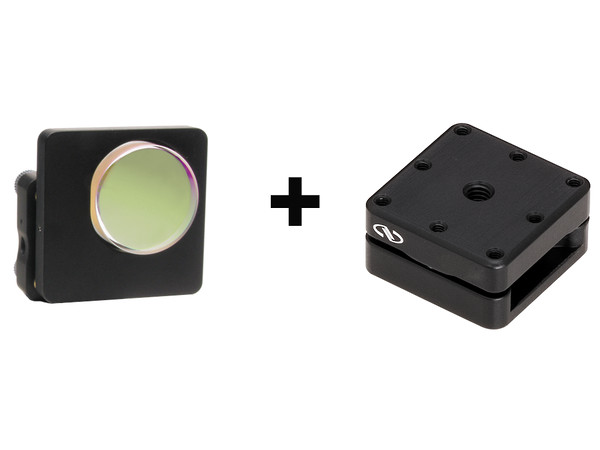

The Flipper not only provides the alignment features of a kinematic mirror mount, it also has the repeatable repositioning like a kinematic base. Adjustment screws let you steer your beam, while a sapphire pad under the screw gives you better than 200 µrad repeatability between flips.

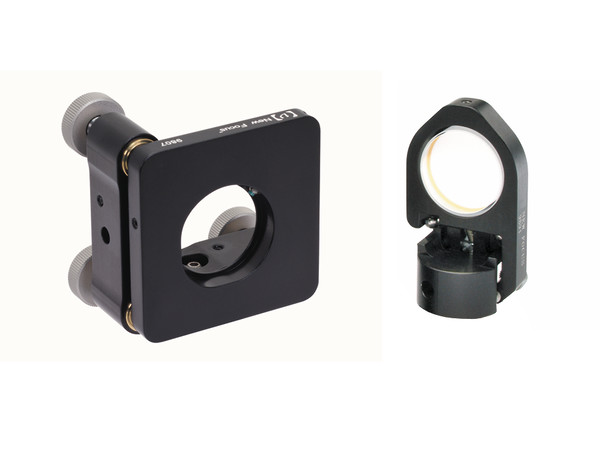

The Flipper mount is almost half the size of most standard kinematic mirror mounts making it ideal for applications with restricted space.

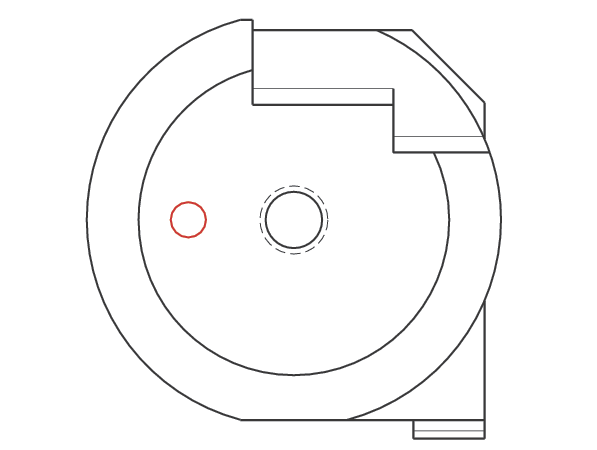

These mounts (except for 9892(-M) models) feature alignment pin holes (shown in red) on the bottom (base) of the mount to enable keying of the position and orientation by means of dowel pins when directly mounting. (Note: Dowel pins not included with mount.) This is especially helpful in OEM applications.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
9953 Optical Pedestal, Clean-Passivated, 1.5 in. Height, 1 in. Diameter, 8-32 | IMPERIAL |
|
$33.00 |
|
|||
 |
9909 Clamping Fork, 1.0 in. Diameter Pedestals, Captive 1/4-20 Screw, Long Slot | IMPERIAL |
|
$19.40 |
|
|||
 |
9481 Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32 | IMPERIAL |
|
$474.00 |
|
|||
 |
9954 Optical Pedestal, Clean-Passivated, 2.0 in. Height, 1 in. Diameter, 8-32 | IMPERIAL |
|
$33.00 |
|
|||
 |
9955 Optical Pedestal, Clean-Passivated, 2.5 in. Height, 1 in. Diameter, 8-32 | IMPERIAL |
|
$36.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
9891-K-L Flipper Optic Mount, 1.0 in. Optic Diameter, Lockable, 8-32 | UNIVERSAL |
|
$252.00 |
|
|||
 |
PS-KF Kinematic Flip Base, Threaded 8-32 Mounting | IMPERIAL |
|
$147.00 |
|
|||
 |
BK-1A Kinematic Base, Magnetic, 1 inch Square | IMPERIAL |
|
$114.00 |
|
|||
 |
9892 Flipper Optic Mount, 2.0 in. Optic Diameter, 8-32 | IMPERIAL |
|
$268.00 |
|
|||
 |
9897 Optical Filter Holder, Flip-Up™, 1 in. Diameter Filters, 8-32 | IMPERIAL |
|
$128.00 |
|
|||
 |
LNS-1 Optic Inserter Stage, 8-32 Thread | IMPERIAL |
|
$513.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
PS-3 Optical Pedestal, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread | IMPERIAL |
|
$34.00 |
|
|||
 |
PX-3 Optical Post, Slotted Base, 3.0 in. Height, 1.0 in. Diameter, 8-32 | IMPERIAL |
|
$38.00 |
|
|||
 |
Q-TMS-3 Optical Post Holder, 3.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork | UNIVERSAL |
|
$66.00 |
|
|||
 |
PS-3E Optical Post, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread | IMPERIAL |
|
$30.00 |
|
