9916-M Clamping Fork

Clamping Fork, 25.4 mm Diameter Pedestals, Captive M6 Screw, Short Slot

Model: 9916-M

$18.20

Show

Compare

Add to List

Product Series Overview

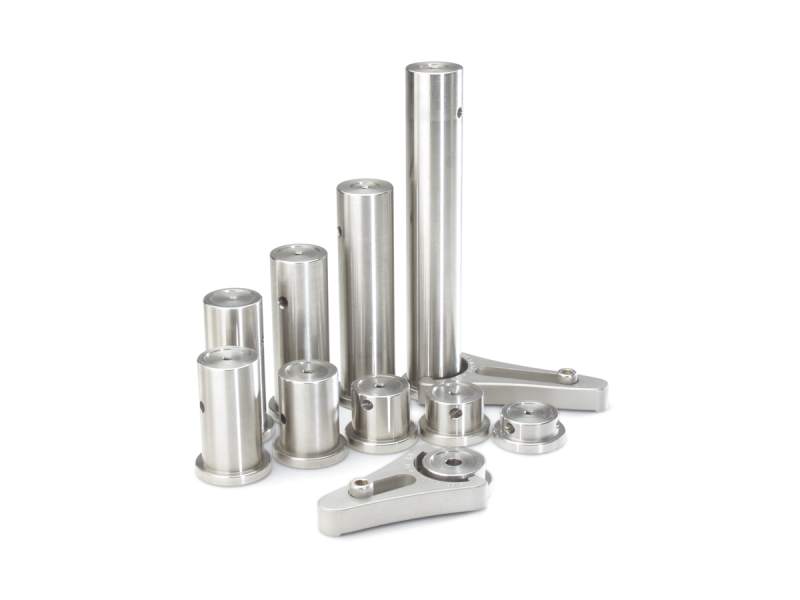

Pedestal Base Clamping Forks

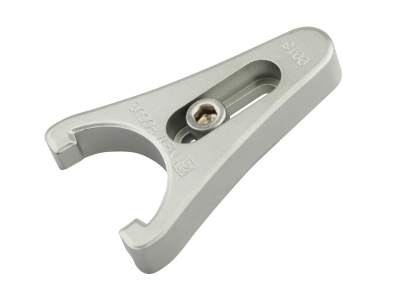

The 9916-M stainless steel clamping fork is unique because the cap-head screw is held captive in the slot of the fork so that it can't fall out. Think about how many times and how much time you have spent looking for the exact screw to clamp the forks in your experiment - you will quickly understand the value these forks provide. 9916-M clamping fork has a 25.4 mm standard slot to provide complete positioning range.

Specifications

Technical Specs

Type

Pedestal Clamping Fork w/ Screw
Slot Length

19.1 mm
Thread Type

M6
Material

Stainless Steel

Pack Quantity

1
Inside Diameter

25.4 mm

Type

Pedestal Clamping Fork w/ Screw
Slot Length

19.1 mm
Thread Type

M6
Material

Stainless Steel

Pack Quantity

1
Inside Diameter

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9916d-Drawing (80.5 kB, PDF)
