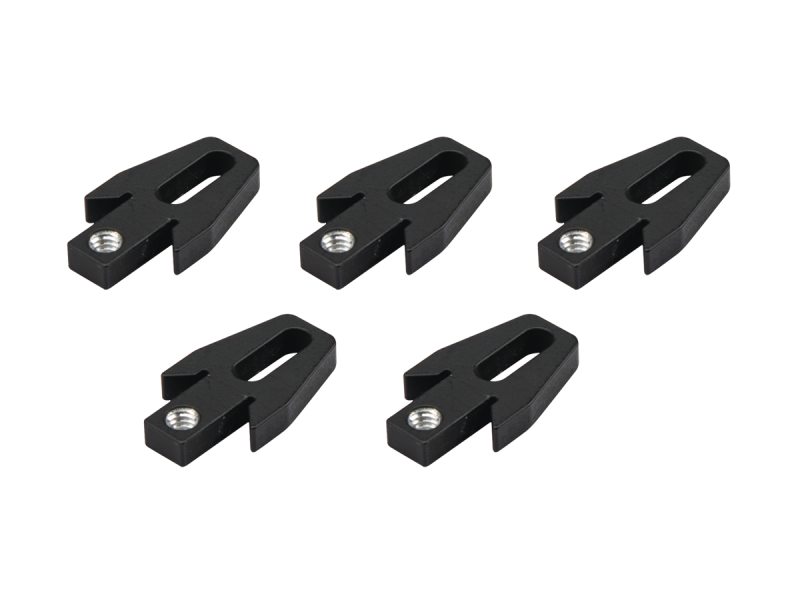

Slotted Extension Base Pack, BPH Series Optical Post Holders, Qty 5

Model: BPH-XB-5

$33

Show

Compare

Add to List

Product Series Overview

Non-Bridging Slotted-Base Optical Post Holders

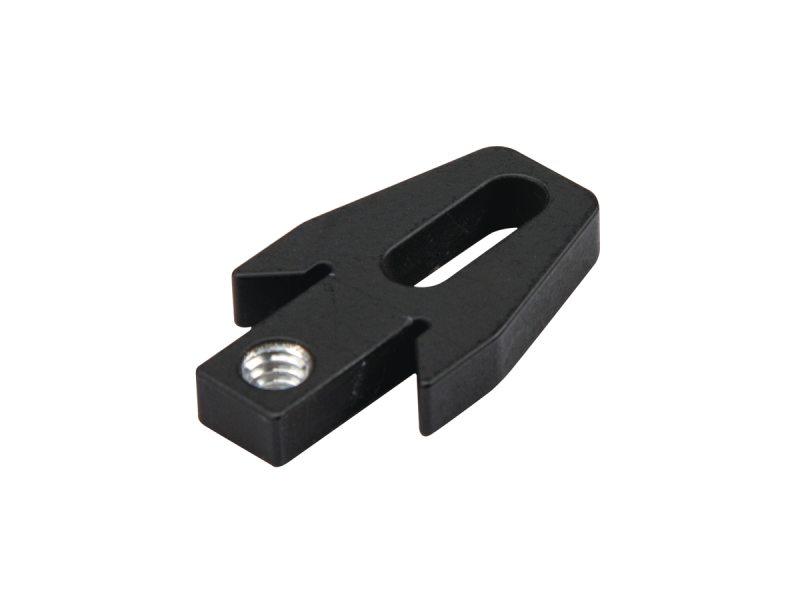

The BPH-XB-5 is a pack of five slotted extension bases for use with the BPH-series of Multifunction Post Holders. The Extension Base slides into the bottom of any of the BPH-series post holders and is secured with a screw, converting the single-slotted BPH post holder into one with a double-slotted base.

Specifications

Technical Specs

Type

Extension Base Pack
Height

6.4 mm
Thread Type

M6

Material

Aluminum
Pack Quantity

5

Type

Extension Base Pack
Height

6.4 mm
Thread Type

M6

Material

Aluminum
Pack Quantity

5

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPH-XB-321 (81.6 kB, PDF)

Other

BPH-XB-5 RoHS Certificate (277.5 kB, PDF)
BPH-XB-5_RoHS2021.pdf (680.2 kB, PDF)
