Construction Cube, 1 x 1 in., 1/4-20

Construction Cube, 1 x 1 in., 1/4-20

Model: CC-1

$26

Show

Compare

Add to List

Product Series Overview

Modular Construction Bases

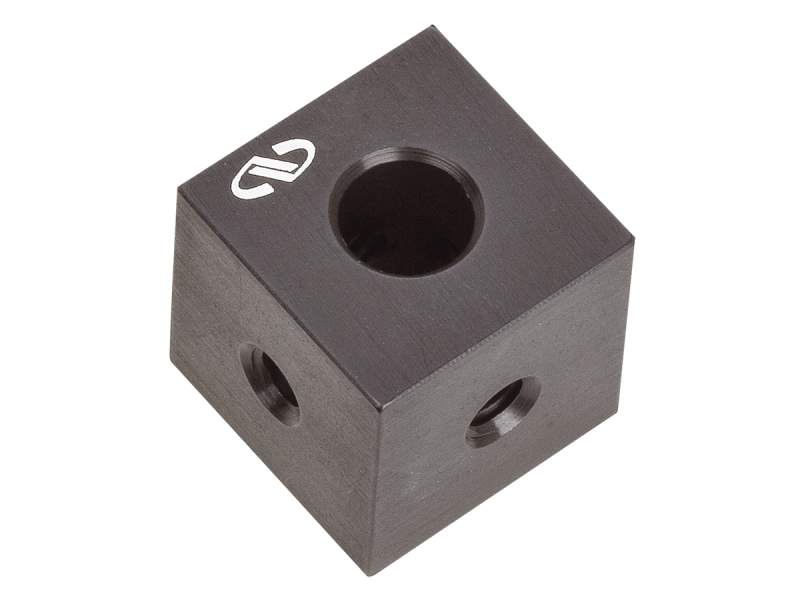

The CC-1 Construction Cube has two tapped holes and a counterbored clearance hole for 1/4-20 screws. This basic building block can be bolted to a breadboard, a rail, another component, or another cube to construct unique assemblies.

Specifications

Technical Specs

Type

Construction Base
Thread Type

1/4-20

Type

Construction Base
Thread Type

1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CC-1 DWG-S (99.6 kB, PDF)

Other

CC-1 RoHS Certificate (278.5 kB, PDF)
CC-1_RoHS2021.pdf (681.4 kB, PDF)
