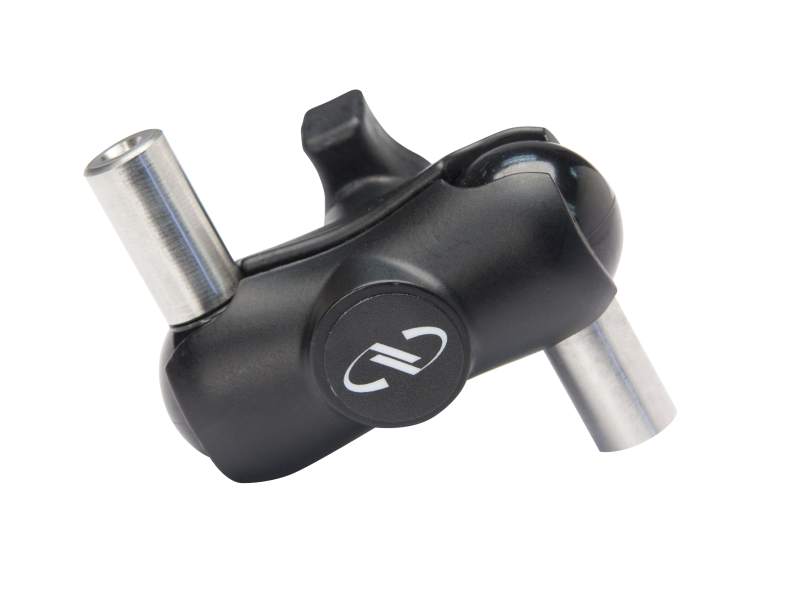

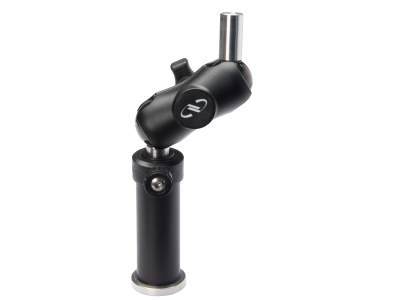

The DJP-1, Double-Jointed Utility Post, made with genuine parts from RAM Mounts®, allows positioning flexibility for post mounting of various mechanical and optical devices. It has two ball-and-socket arms, each having 180° rotation, to provide a full 360° of angular positioning. A single locking knob secures the double-jointed post in position. The DJP-1 has the same mounting thread configuration as Newport's standard SP-series 1/2 in. diameter posts, i.e., 8-32 on one end and 1/4-20 on the other. This enables it to be used with all of the 1/2 in. post accessories such as post holders, clamps, and spacers. The DJP-1 is an excellent, low-cost accessory for the lab for those times when you need non-standard mounting options for your research or production setup.
Additional CAD file downloads are not available for this product.
DJP-1 - Drawings
Additional drawings are not available for this product.
DJP-1
Sign In
Request Resource
In order to provide better service and products, please provide the following brief information.
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Double-Jointed Utility Post, 0.5 in. Post, 8-32 and 1/4-20 Thread
