Optical Delay Line Kit, Quadruple Pass, UV UBBR retroreflector, metric

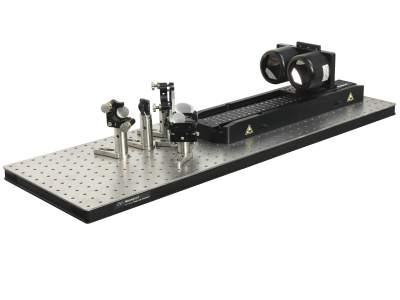

The DL-BKIT4U-UV-M optical delay line kit is configured as a quadruple pass design ultizing the New Focus 9848-KT retroreflector assembly with Newport's 10D620AL.2 silver mirrors mounted in ULTIMA^® clear edge mirror mounts. To insure maximum compatibility to Newport's motion stages, all mechanical parts in this kit are metric compatible. All screws, clamps, posts, post extensions for mounting are also included in the kit.  Please purchase the motion stage and controller separately.

DL-BKIT4U-UV-M Quadruple Pass Kit Contents

This is a quadruple pass delay line kit for UV wavelengths. It features two UV enhanced aluminum broadband hollow retroreflectors that result in reflected beams that are precisely parallel to the incident beams.

All pertinent metric screws required for assembly will be included in the kit.

Part No	Description	Qty in Kit
10D620AL.2	AL Mirror 1 in. Diameter	4
10E20AL.2	Elliptical AL Mirror 1 in.	2
U100-A2K	Ultima Clear Edge Mir Mount	2
9848-KT	Delay Line Mirror Mount Kit	2
UBBR2.5-5UV Model: UBBR2.5-5UV Hollow Retroreflector, Broadband, 63.5 mm, 5 arc sec, 225-700 nm $1,359.00 Show Loading... Add to Cart See Full Product Details Product Series Overview Broadband Hollow Retroreflectors	Hollow Retroreflector UV	2
ID-0.5	Iris Diaphragm 0.5 in. Diameter	1
M-360-90	90 Degree Angle Bracket	1
M-PS-1E	Pedestal Post Extension	2
M-PS-2E	Pedestal Post Extension	3
M-PS-0.5Z	Magnetic Pedestal, M4	5
MH-2P	Fixed Position Lens Mount	1
PS-0.125	Optical Pedestal Spacer, M4	1
PS-0.25	Optical Pedestal Spacer, M4	1
PS-F	Slotted Clamping Fort	4
