Multimode Fiber, Step Index, 500-1100 nm, 0.37 NA, 200 µm Core

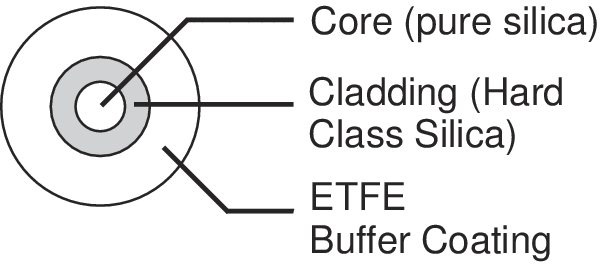

The F-MBB (Mfg. P/N: CF01493-10) Bend-insensitive, pure silica, step index, multimode Sensor Grade Fiber features a core diameter of 200 μm. A hard clad silica 230 μm cladding enhances the fibers’ strength and fatigue resistance. A high NA of 0.37 allows greater coupling efficiencies, while making these fibers optimal for applications requiring tight bending or coiling of fibers.
It's typical 500-1100 nm applications include medical, industrial and avionic sensors and instruments. The operating temperature of the F-MBB is -65°C to +125°C.

Standard pricing is per meter.
