HPF1235 Fluorescence Optical Filter Set

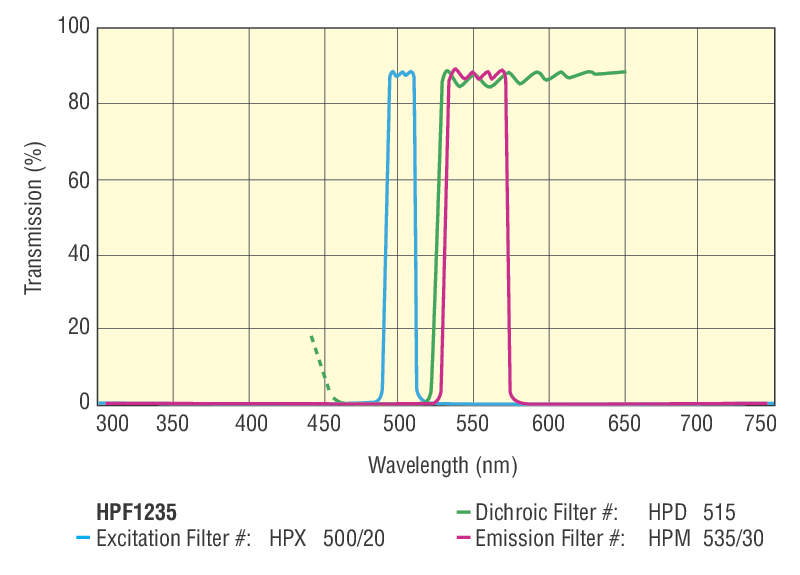

The HPF1235 HPF™ filter set includes HPX500-20

Excitation Filter, HPD515

Dichroic Filter, and HPM535-30

Emission Filter. It is ideal to use with Rhodamine Green , YGFP fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

Rhodamine Green , YGFP

Fluorophores

Rhodamine Green , YGFP

Resources & Downloads

Other

HPF1235 RoHS Certificate (263.9 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price
HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth	UNIVERSAL	Show	$150.00
HPD515 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans.	UNIVERSAL	Show	$195.00
HPM535-30 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 30 nm Bandwidth	UNIVERSAL	Show	$306.00

Fluorescence Optical Filter Set, Rhodamine Green , YGFP
