HPF1240 Fluorescence Optical Filter Set

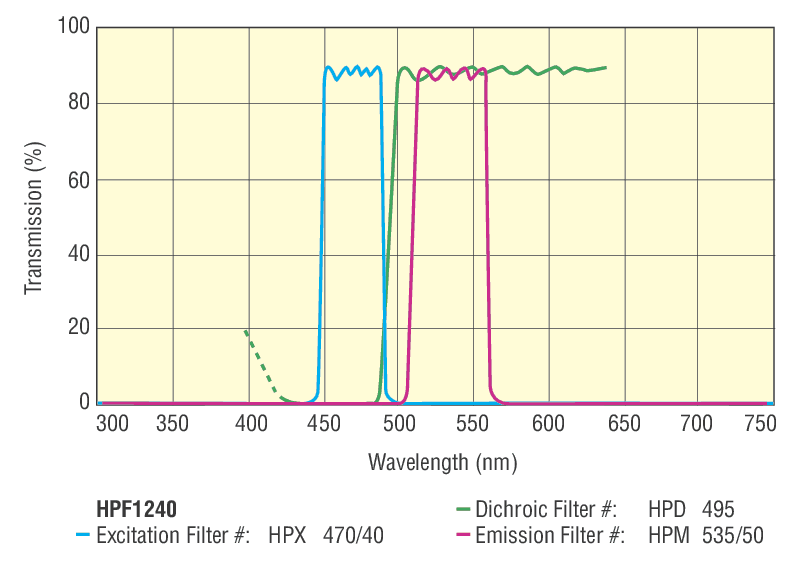

The HPF1240 HPF™ filter set includes HPX470-40

Excitation Filter, HPD495

Dichroic Filter, and HPM535-50

Emission Filter. It is ideal to use with GFP fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

GFP

Fluorophores

GFP

Resources & Downloads

Other

HPF1240 RoHS Certificate (262.8 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price
HPX470-40 Bandpass Filter, Fluorescence, 25.0 mm, 470 nm Center, 40 nm Bandwidth	UNIVERSAL	Show	$150.00
HPD495 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.	UNIVERSAL	Show	$195.00
HPM535-50 Bandpass Filter, Fluorescence, 25.0 mm, 535 nm Center, 50 nm Bandwidth	UNIVERSAL	Show	$195.00

Fluorescence Optical Filter Set, GFP
