HPF1265 Fluorescence Optical Filter Set

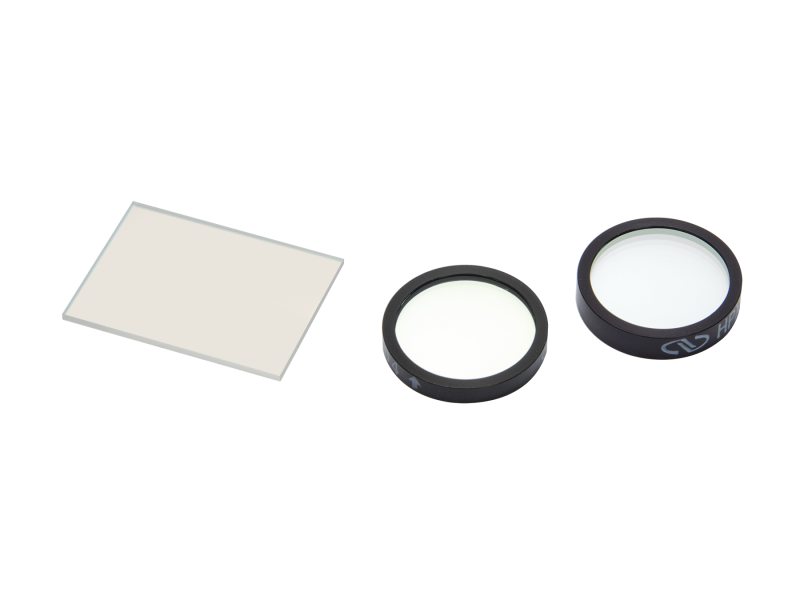

The HPF1265 HPF™ filter set includes HPX500-20

Excitation Filter, HPD525

Dichroic Filter, and HPM550-40

Emission Filter. It is ideal to use with YFP fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

YFP

Fluorophores

YFP

Resources & Downloads

Other

HPF1265 RoHS Certificate (262.8 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price

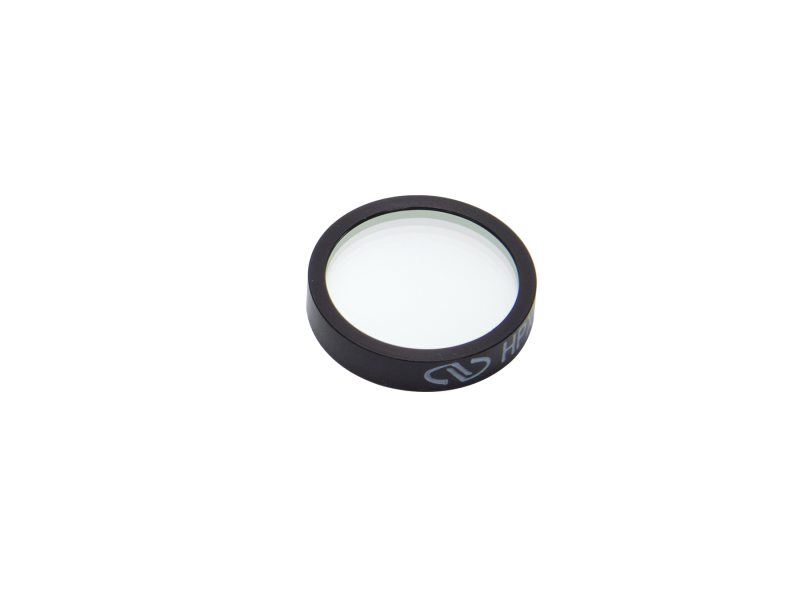

HPX500-20 Bandpass Filter, Fluorescence, 25.0 mm, 500 nm Center, 20 nm Bandwidth	UNIVERSAL	Show	$150
HPD525 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans.	UNIVERSAL	Show	$195
HPM550-40 Bandpass Filter, Fluorescence, 25.0 mm, 550 nm Center, 40 nm Bandwidth	UNIVERSAL	Show	$195

Fluorescence Optical Filter Set, YFP
