The LDC-3736 Precision Laser Controller combines a precision laser current source with a high-power thermoelectric temperature controller specially designed to control high compliance voltage laser diodes. Standard features include triple current range, high stability, and low noise current output. Maximum output current levels of 1A/2A/4A allow for control of a wide range of laser diodes.
Multiple levels of laser protection are built into the controller, including slow start, adjustable current and voltage limits, intermittent contract protection, and output shorting relays. The integrated 128 W thermoelectric temperature controller will typically achieve temperature stability within ±0.003°C.
For automated testing applications in an R&D or production environment, remote operation is easily accomplished through the GPIB/IEEE-488 or USB remote interface. Automated LIV testing commands are built into the instrument firmware. For virtual instrument programming, LabVIEW® instrument drivers are available for download.
We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.
Laser diodes are extremely sensitive to electro-static discharge, excessive current levels, current spikes, or transients from power surges or other laboratory equipment. One of the most important features we have implemented into each instrument is the ILX Lightwave proven laser diode protection standards. These standards have led to advanced protection features such as clamping current limits, even under modulated conditions. In addition, exclusive braid-shielded cables have been specifically designed to suppress radiated noise and transients commonly found in laboratory or production environments. During power up, the laser is protected from over current and turn-on transient conditions by a slow start routine designed to ramp the current to the desired set point referred to as slow-start. These protection features work in conjunction with all instrument modes of operation, providing worry free, fail-safe control of laser diodes.For more information about these protection features, please see our “Protecting Your Laser Diode" application note.
A feature not found in competitors' controllers - fast output shutoff - provides an additional level of protection from intermittent contact between the laser and the current source. Intermittent contact can occur by loose or worn cables causing a momentary open in the circuit or by pogo-pins momentarily losing connection to the laser. If intermittent contact is left undetected, a severe voltage transient can occur which will damage sensitive lasers.
The LDC-37X6 series offers optimal single-emitter low-noise performance. Since current noise scales with maximum current output, the LDC-37X6 series includes multiple current ranges. This flexibility allows users to select the range close to their maximum output to reduce current noise and provide future expansion when working with different laser diodes. This feature allows the LDC-37X6 series to deliver current stability better than 20 ppm for sensitive applications. Careful attention to the design of the thermoelectric temperature controller allows high power operation with low TEC current RMS noise. This reduces the chance of TEC noise coupling into the laser diode, which could potentially cause unstable operation.

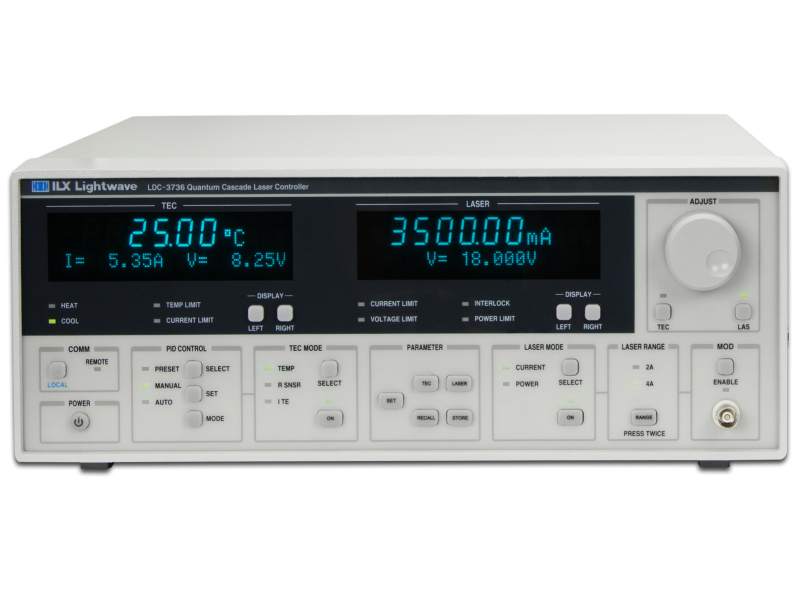

The front panel of the LDC-37X6 Laser Controller was designed for ease of use and readability. The front panel features two large 7-segment displays that also have an integrated dot matrix display. Instrument controls are grouped by mode and function to allow for easy setup. The displays allow for easy viewing of multiple parameters including laser current output, laser voltage, photodiode measurement, measured temperature, set temperature, TEC current, and TEC voltage. Each display can be easily configured to display the most relevant measurements in your application. Laser control is directly addressable from the front panel "adjust" section. Instrument modes are easily selected or adjusted through discrete push buttons and a rotary digital encoder. Configuration of parameters is quickly accomplished through the "parameter" section.
Each laser diode driver’s laser current source can be operated in one of three modes:
The LDC-37X6 series instrument was designed with LIV as a feature. The instrument's firmware commands allows the user to make highly accurate LIV measurements with a single instrument by using the measurements of the photodiode, current, and voltage from the laser diode connection. This can be done using a laser diode's internal photodiode, or by using an external sensor for the light intensity feedback. This gives the user a quick, single-package solution for controlling and characterizing a laser diode.
