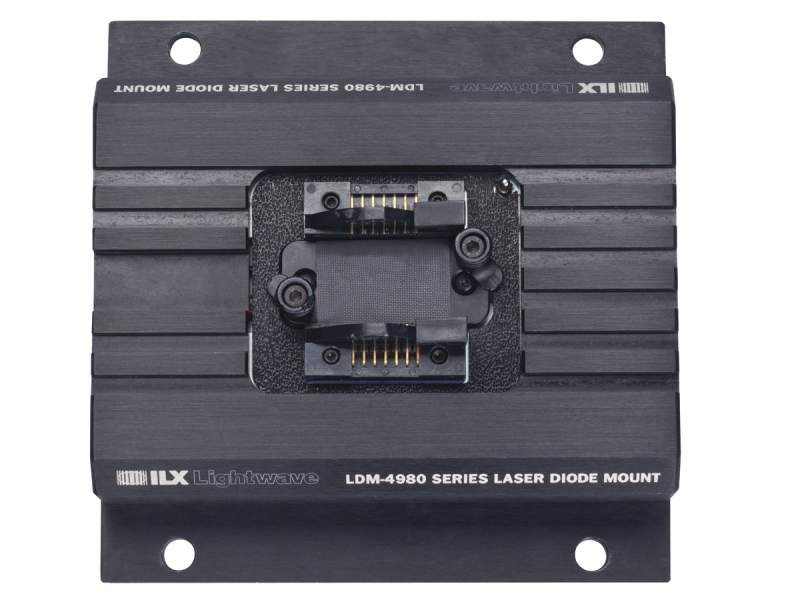

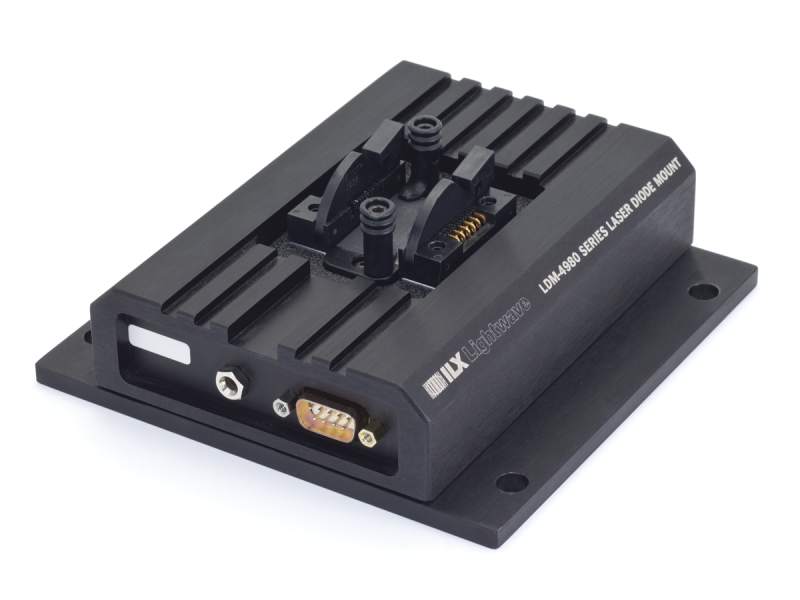

The LDM-4984T-BTB is designed for typical telecommunication butterfly laser diode packages and includes an 800MHz Bias-T and a separate case temperature control for applications requiring tight temperature stability, both integrated inside the standard LDM-4984 mount. An SMA connector on the LDM-4984T-BTB connects to the high frequency end of the Bias-T and requires the laser anode to be on pin 10 and laser cathode on pin 11. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting. The LDM-4984T-BTB features the ILX Lightwave® standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
LDM-4984 Laser Diode Mount, 14-pin Butterfly | UNIVERSAL | $735 |
|
||||
 |
LDM-4984T Laser Diode Mount, 14-pin Butterfly, Temp Controlled | UNIVERSAL | $970 |
|
||||
| |
LDM-4984-BTB Laser Diode Mount, 14-pin Butterfly, Bias-T | UNIVERSAL | $1,050 |
|
||||
 |
LDM-4984RF Laser Diode Mount, 14-pin Butterfly, RF Internal Modulation | UNIVERSAL | $1,990 |
|
||||
 |
LDM-4984TRF Laser Diode Mount, 14-pin Butterfly, RF Internal Modulation, Temp Controlled | UNIVERSAL | $2,410 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
LDX-3220-120V Laser Diode Driver, Precision, 500mA, 10V, GPIB, 120 VAC | UNIVERSAL | $3,460 |
|
||||
 |
LDC-3726 Laser Diode Controller, 100/200/500mA, 10V, 32W TEC, USB & GPIB | UNIVERSAL | $4,825 |
|
||||
 |
LDT-5416 Temperature Controller, Thermoelectric, ±4A, ±4V, 16W, Low Power | UNIVERSAL | $1,885 |
|
