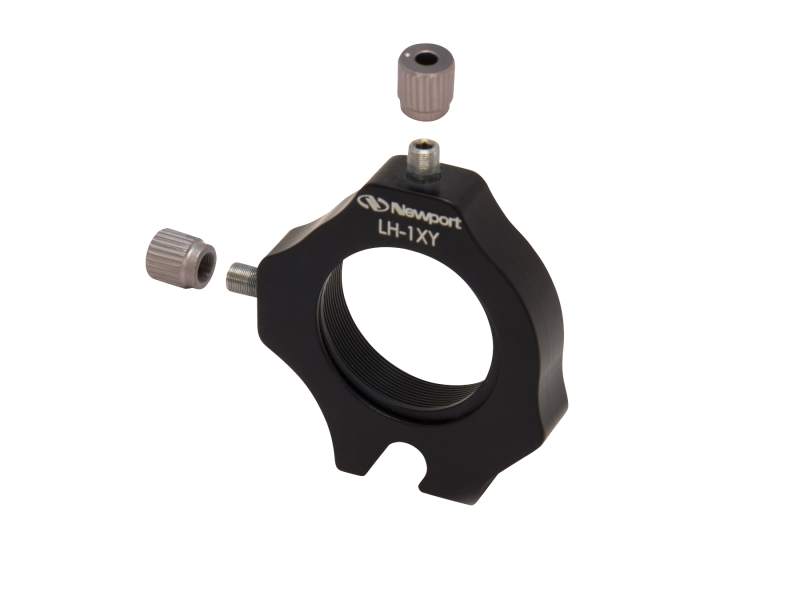

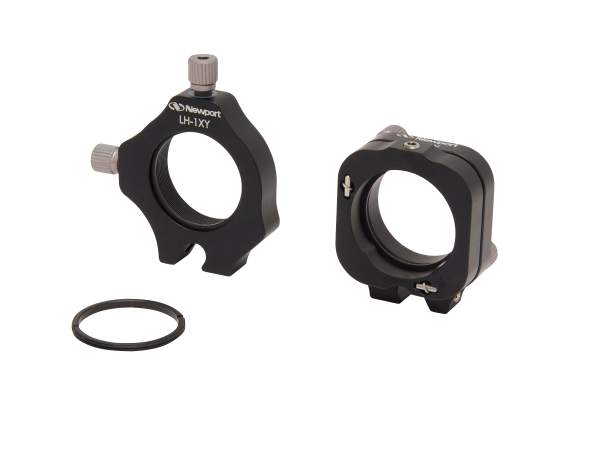

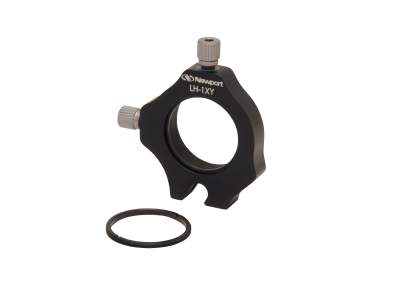

The A-LINE™ LH-1XY is an 1.5-mm travel adjustable lens mount for mounting Ø1 in. (25.4 mm) lenses. The lens mount has a unique angled slot to allow it to be inserted amongst a row of rod-mounted A-Line lens holders. This feature allows the user to easily add and remove lens from the middle of a beam path with out disassembly. This lens mount has special threaded knobs which can be removed with the aid of a 5/64 (2-mm) hex wrench.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
LH-1N Lens Mount, Insertable, 25.4 mm Diameter, A-LINE | UNIVERSAL |
|
$28.00 |
|
|||
 |
LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE | IMPERIAL |
|
$19.40 |
|
|||
 |
LH-1DB Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE | IMPERIAL |
|
$23.00 |
|
|||
 |
LCM-1 Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses | IMPERIAL |
|
$274.00 |
|
|||
 |
LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE | IMPERIAL |
|
$33.00 |
|
|||
 |
LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE | IMPERIAL |
|
$33.00 |
|
|||
 |
LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE | IMPERIAL |
|
$35.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE | UNIVERSAL |
|
$16.90 |
|
|||
 |
LH-GR-10 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE | UNIVERSAL |
|
$29.00 |
|
|||
 |
LH-GR-2 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE | UNIVERSAL |
|
$13.20 |
|
|||
 |
LH-GR-8 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE | UNIVERSAL |
|
$25.00 |
|
|||
 |
LH-GR-1 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 1 in. Length, A-LINE | UNIVERSAL |
|
$11.60 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics | UNIVERSAL |
|
$67.00 |
|
|||
 |
LT10-WR Spanner Wrench, 1 inch LT Series Lens Tubes | UNIVERSAL |
|
$30.00 |
|
|||
 |
LT10-RR Retaining Ring, 22.9 mm ID, 1.035-40 Thread | UNIVERSAL |
|
$7.40 |
|
|||
 |
LH1-ATN Alignment Target, Insertable, A-Line | UNIVERSAL |
|
$33.00 |
|
