Optic Holder, 0.75 in. Diameter, 0.875-20 Thread, For LP-05A Series

Model: LPLH-75T

$36.00

Show

Compare

Add to List

Product Series Overview

Precision Multi-Axis Lens Positioners

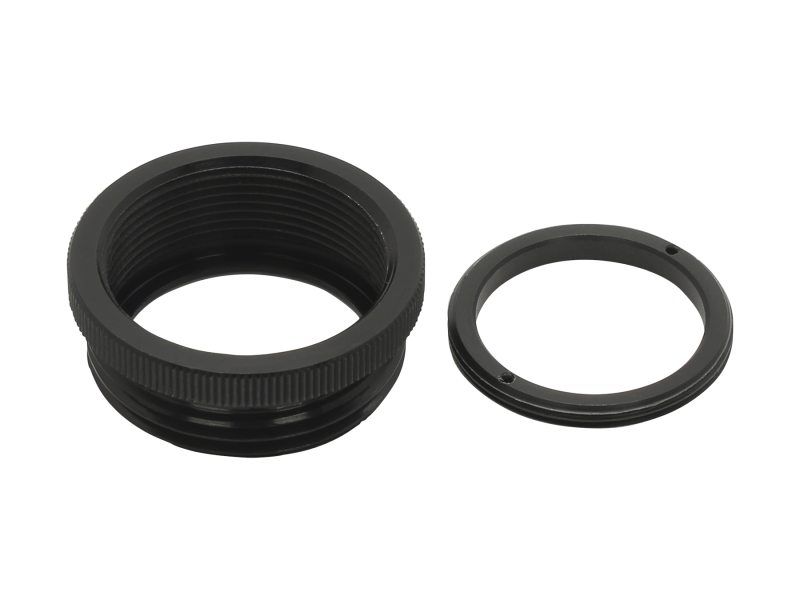

The LPLH-75T Optic Holder is useful for precision positioning 3/4 inch (19.05 mm) diameter optics. It features 0.875-20 threads for use in LP-05A Series multi-axis lens positioners. It includes a reataing ring to secure the 0.75 in. optic.

Specifications

Technical Specs

Type

Optic Holder
Optic Diameter

19.05 mm
Use

LP-05A Lens Positioners
Retaining Ring

LPLH-75-RR (Included)

Retaining Ring Thread

0.775-32
Thread Type

0.875-20

Type

Optic Holder
Optic Diameter

19.05 mm
Use

LP-05A Lens Positioners
Retaining Ring

LPLH-75-RR (Included)

Retaining Ring Thread

0.775-32
Thread Type

0.875-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LPLH-751-5TA-S (126.7 kB, PDF)

Other

LPLH-75T RoHS Certificate (278.5 kB, PDF)
LPLH-75T_RoHS2021.pdf (684.7 kB, PDF)
