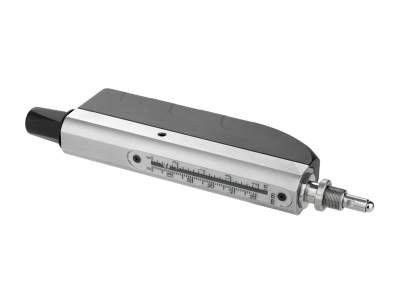

The LTA-HS High Speed Motorized Actuator is optimized for high-speed applications and provides a 50 mm travel range. LTA actuators are designed to fit into selected manual stages and other opto-mechanical components as direct replacement for manual micrometers. It features a space-saving design with the motor and lead screw mounted side-by-side. This reduces the actuator length by 50% and minimizes the unwanted effects of long cantilever loads on micro-positioning equipment. Precision motion is accomplished through a miniature DC servo motor with optimized output torque. This allows for faster motion and high load capacity.
LTA Series motorized actuators provide a manual adjustment knob which permits quick positioning of the actuator when the motor is off.
LTA Actuators include a visible scale that indicates coarse actuator position in both millimeters and inches. Beneath the scale's window is an accessible trigger which, along with the Manual Adjustment Knob, can be manually set to limit the actuator's travel range.
LTA actuators feature a non-rotating tip that prevents wear and eliminates periodic motion variations when the actuator is moving.
