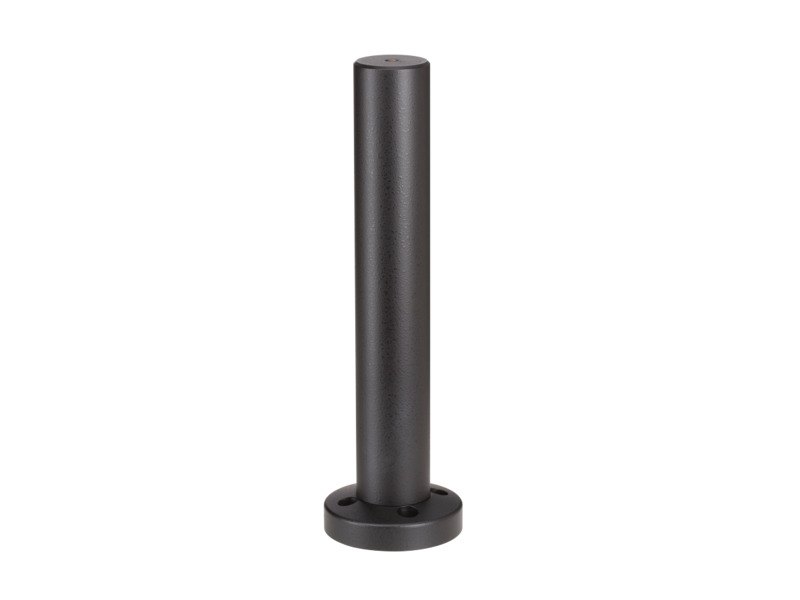

Support Rod, Microlock Breadboard, 254 mm Height, 39.7 mm Diameter, M6

Model: M-XP-10

$143

Show

Compare

Add to List

Product Series Overview

1.5 in. Optical Breadboard Support Posts

The M-XP-10 Post attaches directly to Microlock™ Tiedowns in a breadboard providing a stable way to offset a breadboard from its primary support. The post has a 254.0 mm height and M6 thread. Intermediate heights can be achieved by using the SR-series spacers and extensions or Model P-3, P-5, or P-7 platform posts between the breadboard and the support post.

Specifications

Technical Specs

Type

Optical Support Post
Mounting Holes

M6
Height

254 mm

Diameter

39.7 mm

Type

Optical Support Post
Mounting Holes

M6
Height

254 mm

Diameter

39.7 mm
