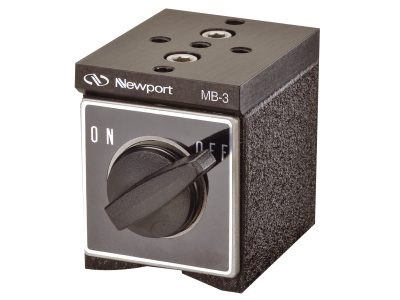

Compact Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread

Model: MB-3

$112

Show

Compare

Add to List

Product Series Overview

Hand Switch Magnetic Bases

The MB-3 Compact Magnetic Base features an aluminum mounting plate, which provides two significant advantages compared to other economy bases: a generous array of tapped mounting holes, plus decoupling from the base’s magnetic field.

Specifications

Technical Specs

Type

Magnetic Base
Thread Type

1/4-20

Holding Force

400 N

Type

Magnetic Base
Thread Type

1/4-20

Holding Force

400 N

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MB-3-S (80.8 kB, PDF)

Other

MB-3 RoHS Certificate (278.8 kB, PDF)
