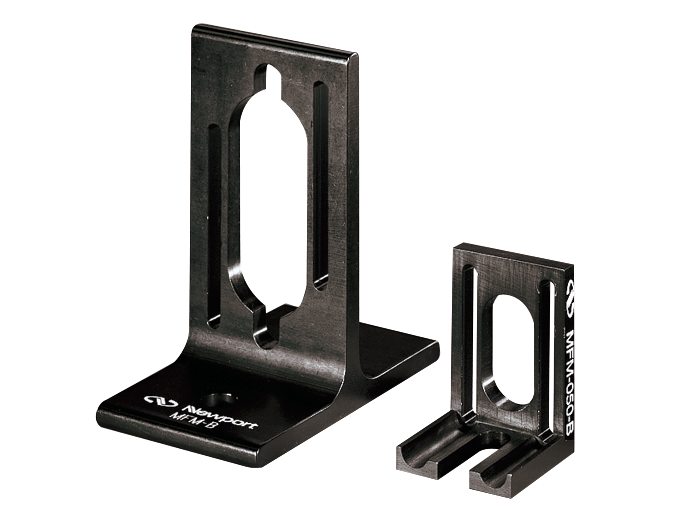

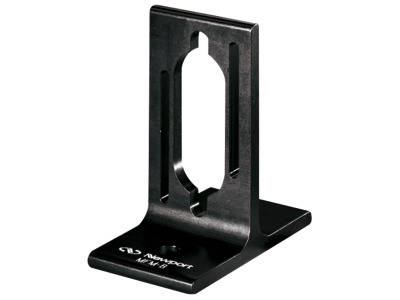

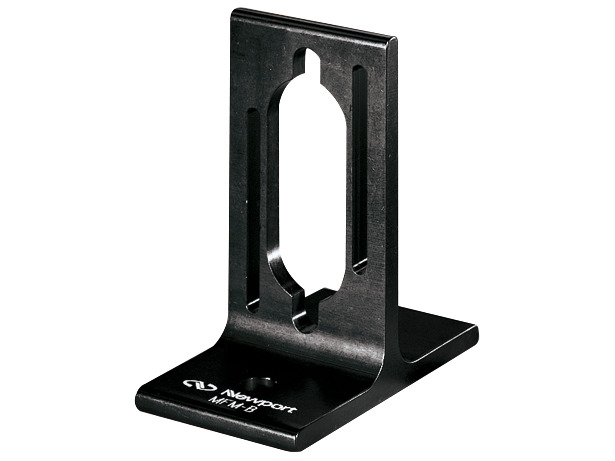

MFM-B Mounting Bracket

Mounting Bracket, MFM-075 or MFM-100 Flexure Optical Mounts

Model: MFM-B

$70.00

Show

Compare

Add to List

Product Series Overview

Mirror Mount Mounting Adapters

The MFM-B Mounting Bracket provides variable optical axis height and solid attachment to surfaces. They allow angular adjustment to be made from either side, so you never obstruct the beam path during alignment. The MFM-B positions the optical axis height from 1 to 2 inch (25.4 to 50.8 mm). Compatible with MFM-075 and MFM-100

Specifications

Technical Specs

Material

Anodized Aluminum
Special Features

Mounting adapter: MFM-075, -100

Material

Anodized Aluminum
Special Features

Mounting adapter: MFM-075, -100

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MFM-B-S (96.8 kB, PDF)

Other

MFM-B_RoHS2021.pdf (679.5 kB, PDF)
