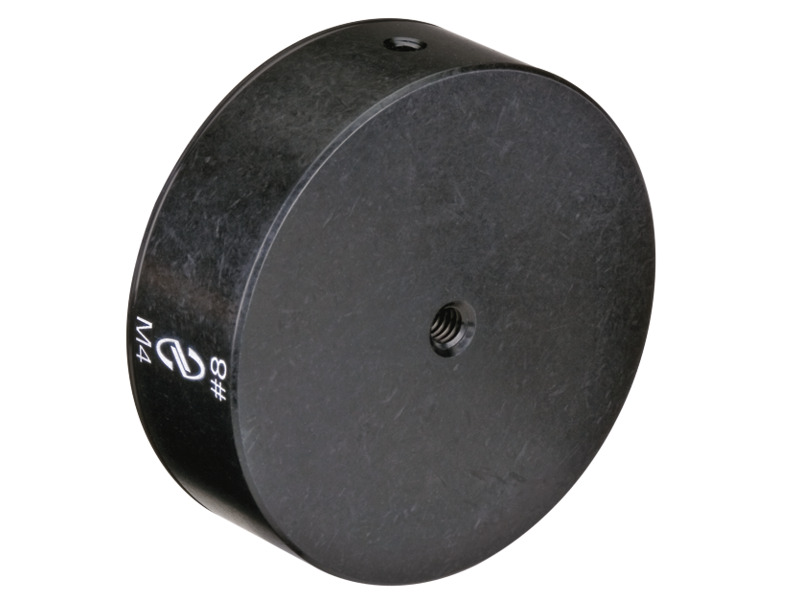

Horizontal Adapter, 2 inch, For U200-P

Model: UPA-PA2

$29

Show

Compare

Add to List

Product Series Overview

Mirror Mount Mounting Adapters

The UPA-PA2 Horizontal Adaptor attaches to the mounting holes on an optical mount, providing a mechanism to convert the U200-P to a post-mounted horizontal platform for mounting prisms, cube beamsplitters, or other components.

Specifications

Technical Specs

Material

Anodized Aluminum
Special Features

Mounting adapter

Material

Anodized Aluminum
Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA-PA12-S (70.3 kB, PDF)

Other

UPA-PA2_RoHS2021.pdf (680.5 kB, PDF)
