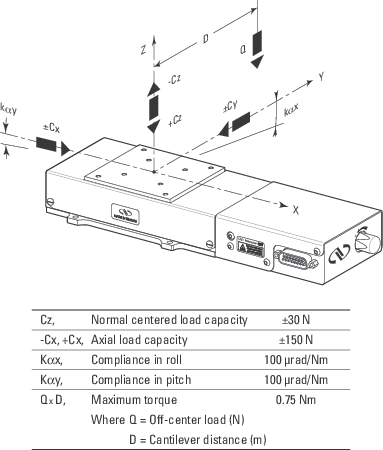

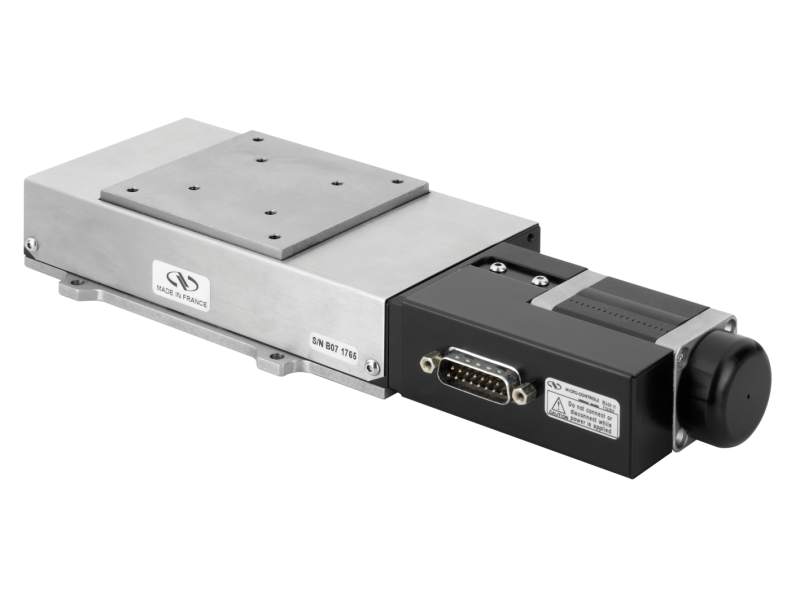

The UZS80PP Vertical Stage offers 4.5 mm vertical adjustment of loads up to 30 N and mounts on top of our UTS series linear stages. The UZS80PP stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS, ESP302 or SMC100PP, low noise operation and very small incremental motions are guaranteed. The UZS80PP does not use encoder feedback, but reaches a position by the number of commanded steps and micro-steps. For this purpose, the stepper motor is directly attached to the worm screw.
Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | UNIVERSAL | ||||||
 |
XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 | UNIVERSAL | ||||||
 |
ESP302 3-Axis DC and Stepper Motion Controller | UNIVERSAL | ||||||
 |
SMC100PP Motion Controller, Single-axis Stepper Motor | UNIVERSAL |
|
$1,354.00 |
|
| Compare | Description | Compatibility | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|---|
 |
MSCABLE-10 Cable, DB-25 Male to DB-15 Female, 10 m Length | UNIVERSAL | $668.00 |
|
